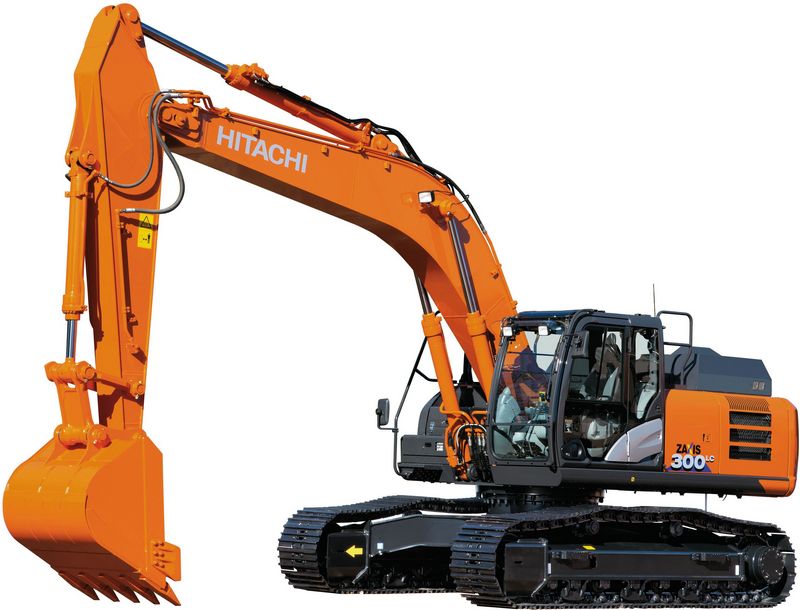

Hitachi ZX300LC-6
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 34.98 ft in (10660 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Cutting Height | 33.7 ft in (10270 mm) |
| Max Loading Height | 24.05 ft in (7330 mm) |
| Max Reach Along Ground | 34.52 ft in (10520 mm) |
| Max Vertical Wall Digging Depth | 21.26 ft in (6480 mm) |
| Max Digging Depth | 23.69 ft in (7220 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length - 3.11 m (10 ft 2 in) |
| Arm Digging Force - Iso | 32372.49 lb (144 kN) |
| Arm Digging Force - Sae | 31023.64 lb (138 kN) |
| Bucket Digging Force - Iso | 45411.41 lb (202 kN) |
| Bucket Digging Force - Sae | 39341.57 lb (175 kN) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 35.14 ft in (10710 mm) |
| Max Cutting Height | 34.36 ft in (10470 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Loading Height | 24.74 ft in (7540 mm) |
| Max Reach Along Ground | 36.39 ft in (11090 mm) |
| Max Vertical Wall Digging Depth | 23.13 ft in (7050 mm) |
| Max Digging Depth | 25.83 ft in (7870 mm) |
| Arm Digging Force - Iso | 28550.74 lb (127 kN) |
| Arm Digging Force - Sae | 27201.88 lb (121 kN) |
| Boom/Stick Option (Hex) 2 | Arm Length - 3.76 m (12 ft 4 in) |
| Bucket Digging Force - Iso | 45411.41 lb (202 kN) |
| Bucket Digging Force - Sae | 39341.57 lb (175 kN) |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Height To Top Of Cab | 10.21 ft in (3110 mm) |
| Width To Outside Of Tracks | 10.8 ft in (3290 mm) |
| Length Of Track On Ground | 34.98 ft in (10660 mm) |
| Tail Swing Radius | 10.67 ft in (3250 mm) |
| Removal Counterweight Clearance | 3.84 ft in (1170 mm) |
Undercarriage
| Ground Pressure | 6.8 psi (46.89 kPa) |
| Drawbar Pull | 55303 lb (246 kN) |
| Number Of Shoes Per Side | 48 |
| Max Travel Speed | 3.24 mph (5.2 km/h) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
Electrical System
| Battery Capacity | 1000 CCA |
| Alternator Rating | 50 amp |
| Batteries | 2 x 12 V |
| Work Lights | 2 halogen |
Cylinders
| Bore (Boom) | 5.4 in (135 mm) |
| Stroke (Boom) | 56 in (1422 mm) |
| Rod Diameter (Boom) | 3.8 in (95 mm) |
| Bore (Arm) | 6 in (150 mm) |
| Stroke (Arm) | 65.4 in (1659 mm) |
| Rod Diameter (Arm) | 4.2 in (105 mm) |
| Bore (Bucket) | 5.4 in (135 mm) |
| Stroke (Bucket) | 42.2 in (1070 mm) |
| Rod Diameter (Bucket) | 3.6 in (90 mm) |
Engine
| Emissions Level | EPA Final Tier 4 / EU Stage IV |
| Number Of Cylinders | 6 |
| Off-Level Capacity | 70 % |
| Engine Model | Isuzu 6HK1 |
| Net Power | 249 hp (185.7 kw) |
| Cooling System | High efficiency direct-driven, suction-type fan |
| Power Measured @ | 1900 rpm |
| Aspiration | Turbocharged, air-to-air charge-air cooler |
| Displacement | 475.4 cu in (7.8 L) |
Capacities
| Engine Oil With Filter | 12.7 gal (48 L) |
| Swing Drive | 3.2 gal (12 L) |
| Fuel Tank | 134.8 gal (510 L) |
| Hydraulic Tank | 41.3 gal (156 L) |
| Diesel Exhaust Fluid (Def) Tank | 18.5 gal (70 L) |
| Cooling System | 12.7 gal (48 L) |
| Hydraulic System | 76.7 gal (290 L) |
| Pump Drive | 0.3 gal (1.1 L) |
| Propel | 2.5 gal (9.2 L) |
Operational
| Operating Weight | 64375 lb (29200 kg) |
Swing Mechanism
| Swing Torque | 66749.4 lb ft (90500 Nm) |
| Swing Speed | 10.3 rpm |
Buckets
| Minimum Bucket Capacity | 1.7 yd3 (1.3 m3) |
| Maximum Bucket Capacity | 2.8 yd3 (2.1 m3) |
Hydraulic System
| Main Pump - Maximum Flow | 62.4 gal/min (236 L/min) |
| Hydraulic System Type | Open center, load sensing |
| Main Pump Type | 2 variable-displacement pumps |
| Implement - Operating Pressure | 4974.8 psi (34300 kPa) |
| Travel - Operating Pressure | 5076.4 psi (35000 kPa) |
| Swing - Operating Pressure | 4699.3 psi (32400 kPa) |
| Power Boost - Operating Pressure | 5511.5 psi (38000 kPa) |
| Controls | Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever |
