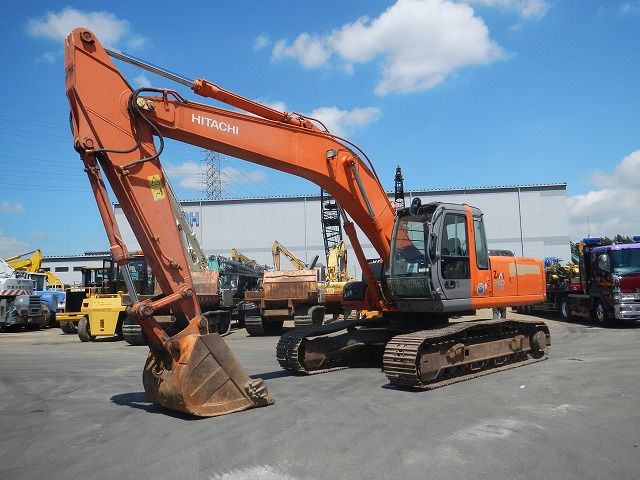

Hitachi ZX240LCH
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 2
| Max Cutting Height | 31.6 ft in (9630 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 33.7 ft in (10270 mm) |
| Max Vertical Wall Digging Depth | 19.76 ft in (6020 mm) |
| Max Digging Depth | 22.81 ft in (6950 mm) |
| Boom/Stick Option (Hex) 2 | arm length 2960mm (9'8") |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 11.36 ft in (3460 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.58 ft in (1090 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 7.25 psi (49.99 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | CC-6BG1T |
| Net Power | 167 hp (124.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 469.9 lb ft (637 Nm) |
| Displacement | 396.3 cu in (6.5 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 42108.3 lb (19100 kg) |
| Fuel Capacity | 100.4 gal (380 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Hydraulic System Fluid Capacity | 80.1 gal (303 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Swing Drive Fluid Capacity | 2.3 gal (8.6 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 107.8 gal/min (408 L/min) |
Swing Mechanism
| Swing Speed | 12.6 rpm |
Buckets
| Reference Bucket Capacity | 1.4 yd3 (1 m3) |
| Minimum Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1 m3) |
