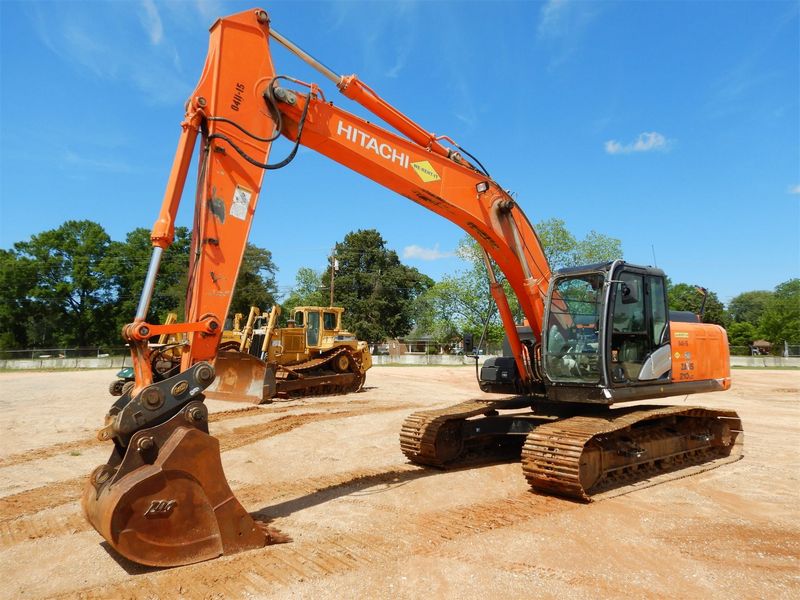

Hitachi ZX210LC-5N
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Tail Swing Radius | 9.49 ft in (2890 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 49 |
| Number Of Carrier Rollers Per Side | 8 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 45636 lb (203 kN) |
| Number Of Shoes Per Side | 2 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4HK1 |
| Net Power | 150 hp (111.9 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 317.4 cu in (5.2 L) |
Operational
| Operating Weight | 47137 lb (21381 kg) |
| Fuel Capacity | 106.5 gal (403.2 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Engine Oil Capacity | 6.1 gal (23 L) |
| Swing Drive Fluid Capacity | 1.7 gal (6.2 L) |
Swing Mechanism
| Swing Speed | 13.4 rpm |
| Swing Torque | 37366.4 lb ft (50662 Nm) |
