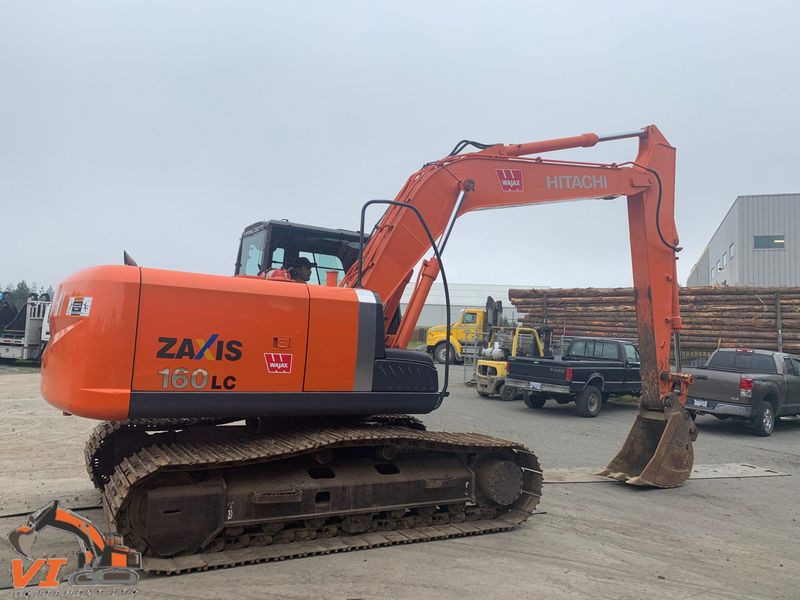

Hitachi ZX160LC-3
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.38 ft in (8650 mm) |
| Shipping Height Of Unit | 10.47 ft in (3190 mm) |
| Max Cutting Height | 28.29 ft in (8620 mm) |
| Max Loading Height | 19.49 ft in (5940 mm) |
| Max Reach Along Ground | 27.37 ft in (8340 mm) |
| Max Vertical Wall Digging Depth | 14.8 ft in (4510 mm) |
| Max Digging Depth | 18.44 ft in (5620 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5100mm/Stick 2200mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.06 ft in (8550 mm) |
| Max Cutting Height | 29.14 ft in (8880 mm) |
| Shipping Height Of Unit | 9.42 ft in (2870 mm) |
| Max Loading Height | 20.25 ft in (6170 mm) |
| Max Reach Along Ground | 28.55 ft in (8700 mm) |
| Max Vertical Wall Digging Depth | 16.93 ft in (5160 mm) |
| Max Digging Depth | 19.62 ft in (5980 mm) |
| Boom/Stick Option (Hex) 2 | Boom 5100mm/Stick 2580mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 28.15 ft in (8580 mm) |
| Max Cutting Height | 29.96 ft in (9130 mm) |
| Max Loading Height | 21 ft in (6400 mm) |
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Max Reach Along Ground | 30.06 ft in (9160 mm) |
| Max Vertical Wall Digging Depth | 18.67 ft in (5690 mm) |
| Max Digging Depth | 21.3 ft in (6490 mm) |
| Boom/Stick Option (Hex) 3 | Boom 5100mm/Stick 3080mm |
Dimensions
| Ground Clearance | 1.58 ft in (470 mm) |
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 10.18 ft in (3100 mm) |
| Tail Swing Radius | 8.17 ft in (2490 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Ground Pressure | 6.97 psi (48 kPa) |
| Number Of Shoes Per Side | 43 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AI-4JJ1X |
| Net Power | 121 hp (90.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Aspiration | Turbocharged,air to air change air cooler |
| Displacement | 183.1 cu in (3 L) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 36376.3 lb (16500 kg) |
| Fuel Capacity | 85 gal (320 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Swing Drive Fluid Capacity | 1.7 gal (6.2 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 101 gal/min (382 L/min) |
Swing Mechanism
| Swing Speed | 13.3 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.1 yd3 (0.9 m3) |
