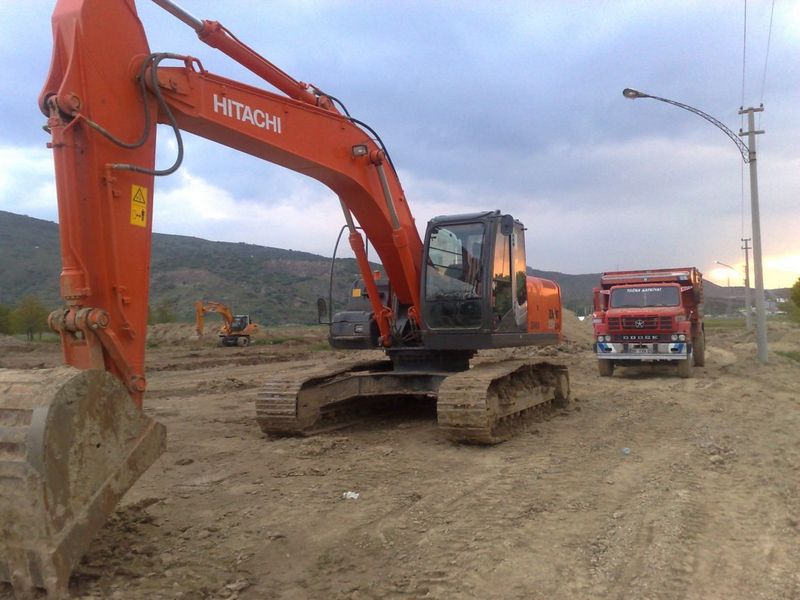

Hitachi ZAXIS480MT
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Cutting Height | 35.54 ft in (10830 mm) |
| Max Loading Height | 23.96 ft in (7300 mm) |
| Max Reach Along Ground | 33.8 ft in (10300 mm) |
| Max Vertical Wall Digging Depth | 15.16 ft in (4620 mm) |
| Max Digging Depth | 19.1 ft in (5820 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6300mm (20\' 8\'\') / Stick 2500mm (8\' 2\'\') |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Max Cutting Height | 33.93 ft in (10340 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Loading Height | 23.23 ft in (7080 mm) |
| Max Reach Along Ground | 36.65 ft in (11170 mm) |
| Max Vertical Wall Digging Depth | 15.46 ft in (4710 mm) |
| Max Digging Depth | 23.69 ft in (7220 mm) |
| Boom/Stick Option (Hex) 2 | Boom 7000mm (23\\\' 0\\\'\\\') / Stick 2900mm (9\\\' 6\\\'\\\') |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Max Cutting Height | 36.62 ft in (11160 mm) |
| Max Loading Height | 25.4 ft in (7740 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Reach Along Ground | 38.78 ft in (11820 mm) |
| Max Vertical Wall Digging Depth | 21.63 ft in (6590 mm) |
| Max Digging Depth | 25.23 ft in (7690 mm) |
| Boom/Stick Option (Hex) 3 | Boom 7000mm (23\\\' 0\\\'\\\') / Stick 3400mm (11\\\' 2\\\'\\\') |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Cutting Height | 36.91 ft in (11250 mm) |
| Max Loading Height | 25.79 ft in (7860 mm) |
| Max Reach Along Ground | 40.2 ft in (12250 mm) |
| Max Digging Depth | 26.88 ft in (8190 mm) |
| Max Vertical Wall Dig Depth | 22.87 ft in (6970 mm) |
| Boom/Stick Option (Hex) 4 | Boom 7000mm (23\\\' 0\\\'\\\') / Stick 3900mm (12\\\' 10\\\'\\\') |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Cutting Height | 38.72 ft in (11800 mm) |
| Max Loading Height | 28.68 ft in (8740 mm) |
| Max Reach Along Ground | 43.08 ft in (13130 mm) |
| Max Digging Depth | 29.66 ft in (9040 mm) |
| Max Vertical Wall Dig Depth | 27.5 ft in (8380 mm) |
| Boom/Stick Option (Hex) 5 | Boom 7000mm (23\\\' 0\\\'\\\') / Stick 4900mm (16\\\' 1\\\'\\\') |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 40.39 ft in (12310 mm) |
| Max Loading Height | 28.68 ft in (8740 mm) |
| Shipping Length Of Unit | 38.78 ft in (11820 mm) |
| Max Reach Along Ground | 46.99 ft in (14320 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Digging Depth | 33.34 ft in (10160 mm) |
| Boom/Stick Option (Hex) 6 | Boom 8200mm (26\\\' 11\\\'\\\') / Stick 4900mm (16\\\' 1\\\'\\\') |
| Max Vertical Wall Dig Depth | 27.5 ft in (8380 mm) |
Dimensions
| Ground Clearance | 2.66 ft in (810 mm) |
| Height To Top Of Cab | 11.36 ft in (3460 mm) |
| Width To Outside Of Tracks | 11.55 ft in (3520 mm) |
| Length Of Track On Ground | 13.95 ft in (4250 mm) |
| Tail Swing Radius | 11.49 ft in (3500 mm) |
| Removal Counterweight Clearance | 4.7 ft in (1430 mm) |
Undercarriage
| Track Gauge | 9.59 ft in (2920 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 2.49 mph (4 km/h) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 49 |
| Ground Pressure | 12.19 psi (84 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6WG1TQA |
| Net Power | 314 hp (234.2 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 940.4 lb ft (1275 Nm) |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 104278.7 lb (47300 kg) |
| Fuel Capacity | 171.8 gal (650 L) |
| Cooling System Fluid Capacity | 16.2 gal (61 L) |
| Hydraulic System Fluid Capacity | 134.8 gal (510 L) |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 14.6 gal (55 L) |
| Swing Drive Fluid Capacity | 1.8 gal (6.5 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 95.2 gal/min (360 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.8 yd3 (2.1 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 3.5 yd3 (2.7 m3) |
