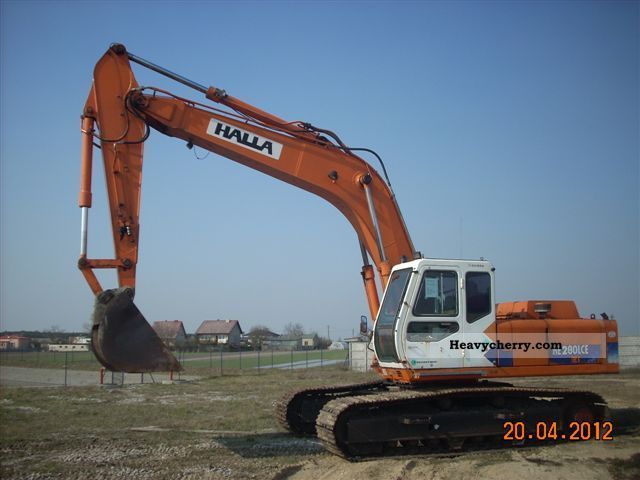

Halla HE280LC
Browse All Halla or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.01 ft in (10670 mm) |
| Shipping Height Of Unit | 11.07 ft in (3373 mm) |
| Max Cutting Height | 33.63 ft in (10250 mm) |
| Max Loading Height | 23.69 ft in (7220 mm) |
| Max Reach Along Ground | 34.83 ft in (10616 mm) |
| Max Digging Depth | 24.61 ft in (7500 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'8" (6300mm) / Stick 10'2" (3100mm) |
Dimensions
| Ground Clearance | 1.64 ft in (498 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 13.23 ft in (4030 mm) |
| Tail Swing Radius | 10.86 ft in (3310 mm) |
| Removal Counterweight Clearance | 3.88 ft in (1180 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 2.99 mph (4.8 km/h) |
| Drawbar Pull | 55430 lb (246.57 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 7.68 psi (52.96 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CT8.3-C |
| Net Power | 177.1 hp (132 kw) |
| Max Torque | 587.1 lb ft (796 Nm) |
| Displacement | 505 cu in (8.3 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 62170.4 lb (28200 kg) |
| Fuel Capacity | 140.1 gal (530 L) |
| Cooling System Fluid Capacity | 7.4 gal (27.8 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Engine Oil Capacity | 6 gal (22.4 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3 gal (11 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 137.4 gal/min (520 L/min) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.3 m3) |
