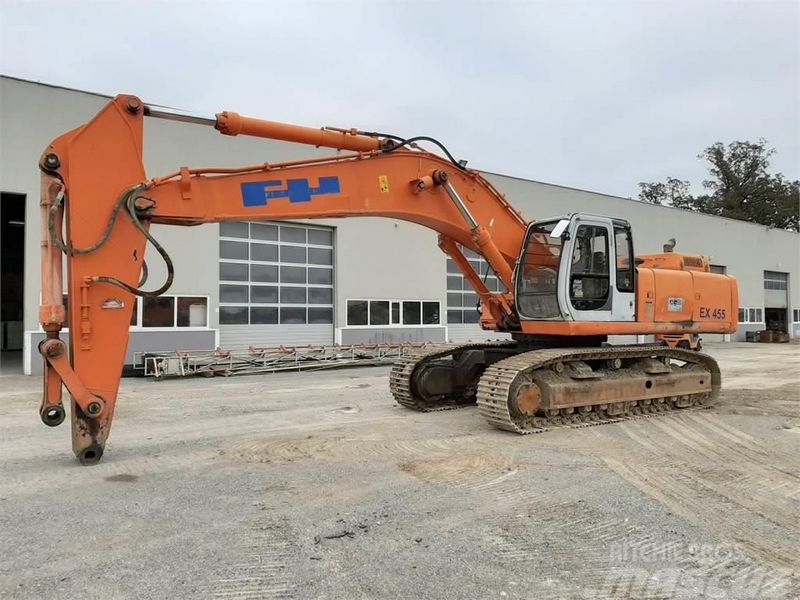

Fiat-Hitachi EX455LCH
Browse All Fiat-Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.31 ft in (11980 mm) |
| Shipping Height Of Unit | 11.68 ft in (3560 mm) |
| Max Cutting Height | 32.94 ft in (10040 mm) |
| Max Loading Height | 22.61 ft in (6890 mm) |
| Max Reach Along Ground | 37.37 ft in (11390 mm) |
| Max Vertical Wall Digging Depth | 23.17 ft in (7060 mm) |
| Max Digging Depth | 23.86 ft in (7270 mm) |
| Boom/Stick Option (Hex) 1 | 2900mm |
Dimensions
| Ground Clearance | 2.53 ft in (770 mm) |
| Height To Top Of Cab | 10.78 ft in (3285 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 14.67 ft in (4470 mm) |
| Tail Swing Radius | 11.82 ft in (3600 mm) |
| Removal Counterweight Clearance | 4.53 ft in (1380 mm) |
Undercarriage
| Track Gauge | 7.52 ft in (2290 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 12 psi (82.74 kPa) |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Track Rollers Per Side | 10 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | A-6RB1TQA |
| Net Power | 301.8 hp (225 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | turbocharged |
| Displacement | 836.1 cu in (13.7 L) |
Operational
| Operating Weight | 101412.7 lb (46000 kg) |
| Fuel Capacity | 159.9 gal (605 L) |
| Cooling System Fluid Capacity | 11.4 gal (43 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 13.3 gal (50 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4351.2 psi (30000 kPa) |
| Hydraulic Pump Flow Capacity | 190.3 gal/min (720 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.7 yd3 (2.1 m3) |
| Minimum Bucket Capacity | 2.4 yd3 (1.9 m3) |
| Maximum Bucket Capacity | 3 yd3 (2.3 m3) |
