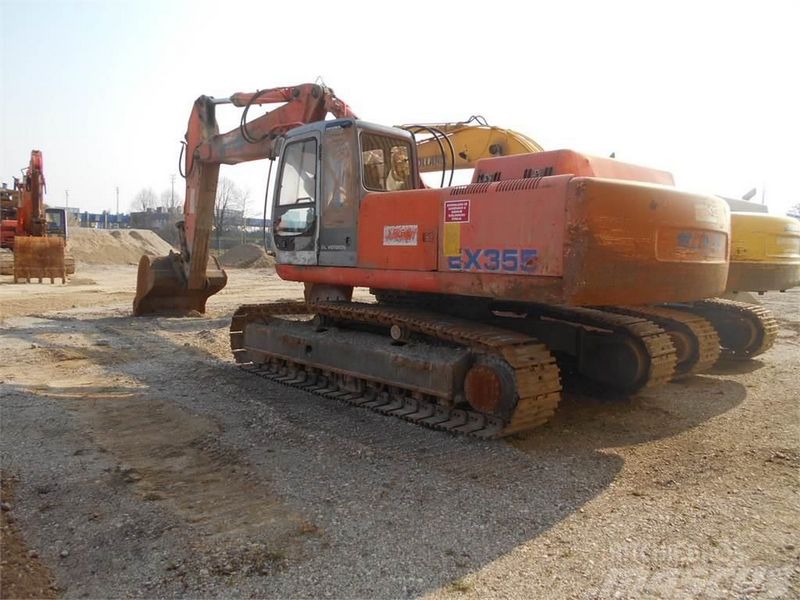

Fiat-Hitachi EX355EL
Browse All Fiat-Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.23 ft in (11040 mm) |
| Shipping Height Of Unit | 11.46 ft in (3490 mm) |
| Max Cutting Height | 32.55 ft in (9920 mm) |
| Max Loading Height | 23.07 ft in (7030 mm) |
| Max Reach Along Ground | 33.14 ft in (10100 mm) |
| Max Vertical Wall Digging Depth | 20.64 ft in (6290 mm) |
| Max Digging Depth | 21.3 ft in (6490 mm) |
| Boom/Stick Option (Hex) 1 | one piece 6400mm |
Dimensions
| Ground Clearance | 1.74 ft in (530 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Width To Outside Of Tracks | 9.85 ft in (3000 mm) |
| Length Of Track On Ground | 13.3 ft in (4052 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 4.11 ft in (1250 mm) |
Undercarriage
| Track Gauge | 7.88 ft in (2400 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 9.7 psi (66.88 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | 6SD1T |
| Net Power | 237.4 hp (177 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | turbocharged |
| Displacement | 599.9 cu in (9.9 L) |
Operational
| Operating Weight | 74957.2 lb (34000 kg) |
| Fuel Capacity | 148 gal (560 L) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9.3 gal (35 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4641.3 psi (32000 kPa) |
| Hydraulic Pump Flow Capacity | 137.4 gal/min (520 L/min) |
Swing Mechanism
| Swing Speed | 11.3 rpm |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 2.8 yd3 (2.1 m3) |
