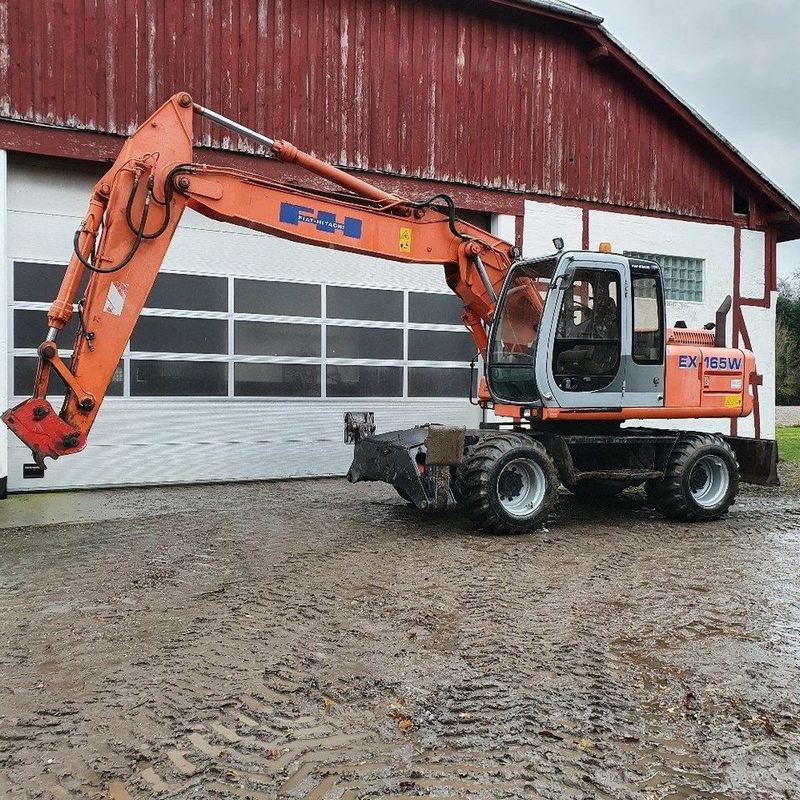

Fiat-Hitachi EX165
Browse All Fiat-Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 27.55 ft in (8395 mm) |
| Shipping Height Of Unit | 9.7 ft in (2955 mm) |
| Max Cutting Height | 30.7 ft in (9355 mm) |
| Max Loading Height | 21.33 ft in (6500 mm) |
| Max Reach Along Ground | 26.09 ft in (7950 mm) |
| Max Vertical Wall Digging Depth | 15.93 ft in (4855 mm) |
| Max Digging Depth | 16.36 ft in (4985 mm) |
| Boom/Stick Option (Hex) 1 | 1800mm |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.19 ft in (2800 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 10.18 ft in (3100 mm) |
| Tail Swing Radius | 8.01 ft in (2440 mm) |
| Removal Counterweight Clearance | 3.02 ft in (920 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Ground Pressure | 6.81 psi (46.96 kPa) |
| Number Of Carrier Rollers Per Side | 7 |
| Number Of Track Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | A - 4BG 1TPG |
| Net Power | 102 hp (76 kw) |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | turbocharged |
| Displacement | 262.5 cu in (4.3 L) |
Operational
| Operating Weight | 35714.9 lb (16200 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.9 gal (18.4 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.3 gal (16.2 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4641.3 psi (32000 kPa) |
| Hydraulic Pump Flow Capacity | 66.6 gal/min (252 L/min) |
Swing Mechanism
| Swing Speed | 13.2 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.3 yd3 (1 m3) |
