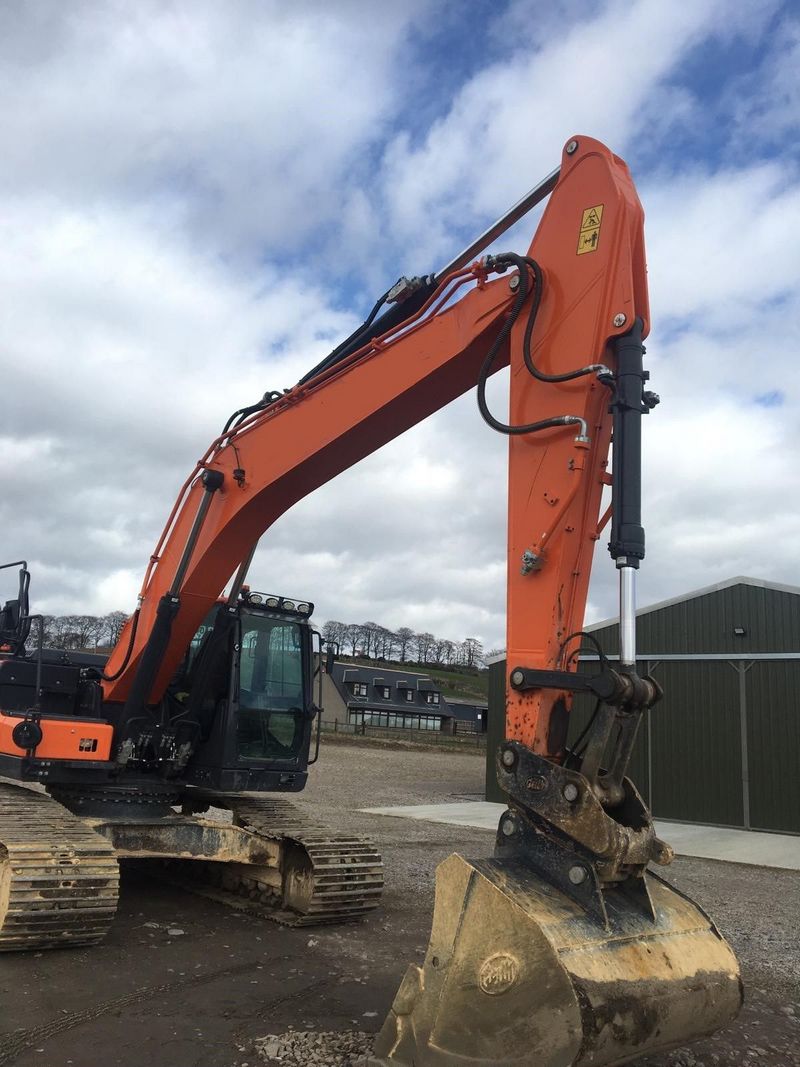

Doosan DX255LC-5
Browse All Doosan or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.16 ft in (10105 mm) |
| Shipping Height Of Unit | 11.09 ft in (3380 mm) |
| Max Loading Height | 6.86 ft in (2090 mm) |
| Max Reach Along Ground | 34.22 ft in (10430 mm) |
| Max Vertical Wall Digging Depth | 18.12 ft in (5520 mm) |
| Max Digging Depth | 24 ft in (7315 mm) |
| Max Digging Reach | 34.8 ft in (10605 mm) |
| Boom/Stick Option (Hex) 1 | BOOM ft-in(mm)19.4(5900) |
| Max Digging Height | 32.22 ft in (9820 mm) |
| Minimum Swing Radius | 147.45 in (3745 mm) |
Dimensions
| Tail Swing Radius | 9.98 ft in (3040 mm) |
| Undercarriage Width | 11.49 ft in (3500 mm) |
| Cab Width | 3313.65 ft in (1010 m) |
| Removal Counterweight Clearance | 3.65 ft in (1110 mm) |
| Track Length | 182.29 in (4630 mm) |
| Track Shoe Width | 2.96 ft in (900 mm) |
| Track Width | 8530.19 ft in (2600 m) |
Undercarriage
| Drawbar Pull | 62832 lb (279.5 kN) |
| Number Of Upper Rollers | 2 |
| Number Of Shoes Per Side | 51 |
| Number Of Lower Rollers | 10 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Doosan |
| Engine Model | DL06P |
| Net Power | 181 hp (135 kw) |
| Gross Power | 189 hp (141 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 593 lb ft (804.1 Nm) |
| Displacement | 5.9 cu in (0.1 L) |
| Torque Measured @ | 1400 rpm |
| Alternator | 85 amps |
Operational
| Travel Speed, Low Range | 2 mph (3.2 km/h) |
| Travel Speed, High Range | 3.5 mph (5.6 km/h) |
| Def Tank Capacity | 8.4 gal (31.5 L) |
| Fuel Capacity | 111 gal (420 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Hydraulic System Fluid Capacity | 74 gal (280 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 7.2 gal (27 L) |
| Swing Drive Fluid Capacity | 1.9 gal (7 L) |
| Hydraulic Tank | 63.5 gal (240 L) |
Swing Mechanism
| Swing Torque | 71462 lb ft (96889.5 Nm) |
| Swing Speed | 10 rpm |
Hydraulic
| Pilotpump-Gear Design | 7.6 gal/min (28.5 L/min) |
| Relief Pressure - Boost | 5263 psi (36287.1 kPa) |
| Relief Pressure -Normal | 4978 psi (34322.1 kPa) |
| Main Pump | 115.8 gal/min (438 L/min) |
