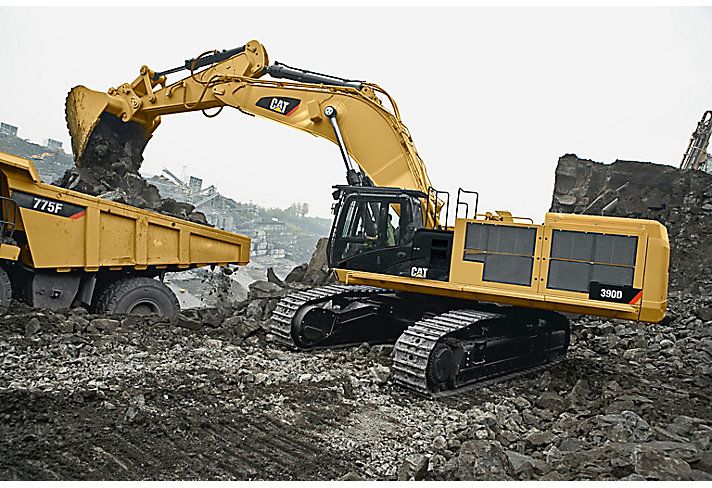

Caterpillar 390D L
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Undercarriage
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 9 |
Engine
| Engine Make | 2236 |
| Engine Model | C18 ACERT (ATAAC) |
| Net Power | 523 hp (390.1 kw) |
| Displacement | 1104.5 cu in (18.1 L) |
| Bore | 5.8 in (145.1 mm) |
| Stroke | 7.2 in (182.9 mm) |
| Net Power - Iso 9249 | 523 hp (390.1 kw) |
| Net Power - Sae J1349 | 523 hp (390.1 kw) |
| Engine Model | Cat C18 ACERT (ATAAC) |
| Net Power - Eec 80/1269 | 523 hp (390.1 kw) |
| Net Flywheel Power | 523 hp (390.1 kw) |
Operational
| Operating Weight | 190016 lb (86189.9 kg) |
| Fuel Capacity | 327.6 gal (1240 L) |
| Cooling System Fluid Capacity | 26.7 gal (101 L) |
| Hydraulic System Fluid Capacity | 262.9 gal (995 L) |
| Engine Oil Capacity | 17.2 gal (65 L) |
| Swing Drive Fluid Capacity | 5.1 gal (19.1 L) |
| Hydraulic Pump Flow Capacity | 258.9 gal/min (980.1 L/min) |
Swing Mechanism
| Swing Torque | 191766 lb ft (259999.8 Nm) |
| Swing Speed | 6.2 rpm |
Weights
| Operating Weight | 190016 lb (86189.9 kg) |
| Operating Weight - Long Undercarriage | 190016 lb (86189.9 kg) |
Hydraulic System
| Pilot System - Maximum Flow | 23.78 gal/min |
| Pilot System - Maximum Pressure | 597.56 psi |
| Maximum Pressure - Travel | 5076.3 psi |
| Maximum Pressure - Swing | 3770.9 psi |
| Swing System - Maximum Flow | 121.52 gal/min |
| Boom Cylinder - Bore | 8.3 in (210.1 mm) |
| Boom Cylinder - Stroke | 77.5 in (1967 mm) |
| Stick Cylinder - Bore | 8.7 in (220 mm) |
| Stick Cylinder - Stroke | 89.1 in (2261.9 mm) |
| Main System - Maximum Flow - Total | 258.89 gal/min |
| Maximum Pressure - Equipment - Normal | 5076.3 psi |
| Hb2 Family Bucket Cylinder - Bore | 7.9 in (199.9 mm) |
| Hb2 Family Bucket Cylinder - Stroke | 57.2 in (1451.2 mm) |
| Jc Family Bucket Cylinder - Bore | 8.7 in (220 mm) |
| Jc Family Bucket Cylinder - Stroke | 62.5 in (1586 mm) |
Service Refill Capacities
| Cooling System | 26.7 gal (101 L) |
| Final Drive - Each | 5.6 gal (21.1 L) |
| Hydraulic System - Including Tank | 262.9 gal (995 L) |
| Engine Oil | 17.2 gal (65 L) |
| Fuel Tank Capacity | 327.6 gal (1240 L) |
| Swing Drive - Each | 5.1 gal (19.1 L) |
Standards
| Brakes | SAE J1026 APR90 |
| Cab/Fogs | SAE J1356 FEB88/ISO 10262 |
Sound Performance
| Performance | ANSI/SAE J1166 OCT98 |
Track
| Number Of Carrier Rollers - Each Side | 3 |
| Number Of Track Rollers - Each Side - Long Undercarriage | 9 |
| Number Of Shoes - Each Side - Long Undercarriage | 51 |
Drive
| Maximum Travel Speed | 2.8 mph (4.6 km/h) |
| Maximum Drawbar Pull | 132637.3 lb (60163.3 kg) |
