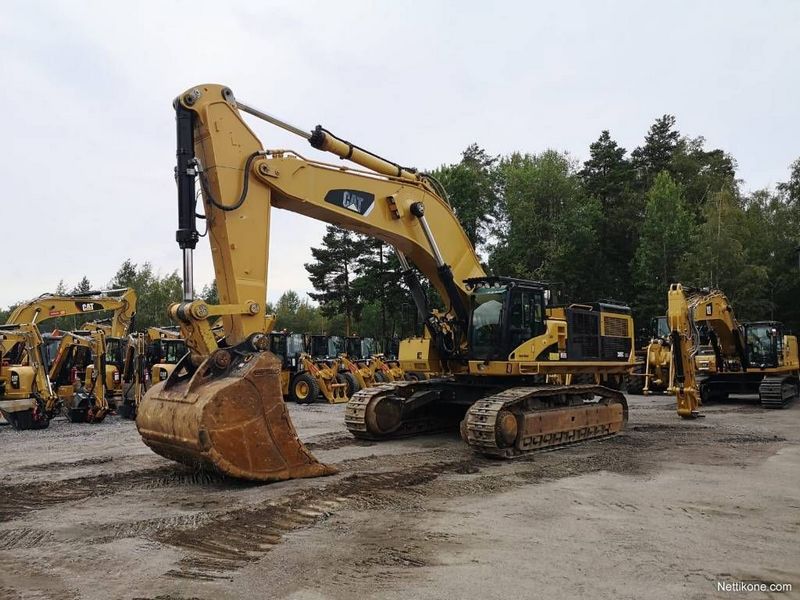

Caterpillar 385C
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 44.2 ft in (13470 mm) |
| Shipping Height Of Unit | 15.69 ft in (4782 mm) |
| Max Cutting Height | 41.14 ft in (12539 mm) |
| Max Loading Height | 26.45 ft in (8059 mm) |
| Max Reach Along Ground | 40.3 ft in (12281 mm) |
| Max Vertical Wall Digging Depth | 15.25 ft in (4646 mm) |
| Max Digging Depth | 23.43 ft in (7140 mm) |
| Boom/Stick Option (Hex) 1 | Mass Boom 7250mm w/ stick 2900mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 44.21 ft in (13474 mm) |
| Max Cutting Height | 41.6 ft in (12679 mm) |
| Shipping Height Of Unit | 16.22 ft in (4942 mm) |
| Max Loading Height | 27.02 ft in (8233 mm) |
| Max Reach Along Ground | 41.68 ft in (12704 mm) |
| Max Vertical Wall Digging Depth | 16.14 ft in (4917 mm) |
| Max Digging Depth | 24.99 ft in (7615 mm) |
| Boom/Stick Option (Hex) 2 | Mass Boom 7250mm w/ stick 3400mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 48.01 ft in (14633 mm) |
| Max Cutting Height | 44.56 ft in (13579 mm) |
| Max Loading Height | 30.29 ft in (9232 mm) |
| Shipping Height Of Unit | 16.28 ft in (4960 mm) |
| Max Reach Along Ground | 45.31 ft in (13808 mm) |
| Max Vertical Wall Digging Depth | 19.28 ft in (5874 mm) |
| Max Digging Depth | 28.05 ft in (8547 mm) |
| Boom/Stick Option (Hex) 3 | GP Boom 8400mm / Stick 3400mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 47.91 ft in (14602 mm) |
| Shipping Height Of Unit | 16.89 ft in (5146 mm) |
| Max Cutting Height | 43.63 ft in (13297 mm) |
| Max Loading Height | 31.24 ft in (9521 mm) |
| Max Reach Along Ground | 47.51 ft in (14479 mm) |
| Max Digging Depth | 30.85 ft in (9403 mm) |
| Boom/Stick Option (Hex) 4 | GP Boom 8400mm / Stick 4400mm |
| Max Vertical Wall Dig Depth | 16.65 ft in (5072 mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 47.24 ft in (14398 mm) |
| Shipping Height Of Unit | 18.82 ft in (5736 mm) |
| Max Cutting Height | 45.14 ft in (13756 mm) |
| Max Loading Height | 32.74 ft in (9977 mm) |
| Max Reach Along Ground | 50.92 ft in (15520 mm) |
| Max Digging Depth | 34.46 ft in (10503 mm) |
| Boom/Stick Option (Hex) 5 | GP Boom 8400mm / Stick 5500mm |
| Max Vertical Wall Dig Depth | 19.68 ft in (5997 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 49.02 ft in (14939 mm) |
| Max Loading Height | 36.76 ft in (11204 mm) |
| Shipping Length Of Unit | 53.06 ft in (16171 mm) |
| Max Reach Along Ground | 55.91 ft in (17041 mm) |
| Shipping Height Of Unit | 17.58 ft in (5357 mm) |
| Max Digging Depth | 37.9 ft in (11551 mm) |
| Boom/Stick Option (Hex) 6 | Reach Boom 10000mm / Stick 5500mm |
| Max Vertical Wall Dig Depth | 20.66 ft in (6296 mm) |
Dimensions
| Ground Clearance | 2.92 ft in (890 mm) |
| Height To Top Of Cab | 12.34 ft in (3760 mm) |
| Width To Outside Of Tracks | 11.16 ft in (3400 mm) |
| Length Of Track On Ground | 15.1 ft in (4600 mm) |
| Tail Swing Radius | 15.06 ft in (4590 mm) |
| Removal Counterweight Clearance | 5.19 ft in (1580 mm) |
Undercarriage
| Track Gauge | 11.52 ft in (3510 mm) |
| Shoe Size | 25.6 in (650 mm) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
| Drawbar Pull | 133086.9 lb (592 kN) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 47 |
| Number Of Carrier Rollers Per Side | 3 |
Engine
| Engine Make | 2236 |
| Engine Model | C18 ACERT Technology |
| Net Power | 530 hp (395.3 kw) |
| Gross Power | 530 hp (395.3 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1104.6 cu in (18.1 L) |
| Engine Model | C18 ACERT |
Operational
| Operating Weight | 185475 lb (84130 kg) |
| Fuel Capacity | 327.6 gal (1240 L) |
| Cooling System Fluid Capacity | 26.7 gal (101 L) |
| Hydraulic System Fluid Capacity | 262.9 gal (995 L) |
| Engine Oil Capacity | 17.2 gal (65 L) |
| Swing Drive Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Relief Valve Pressure | 4641.3 psi (32000 kPa) |
| Hydraulic Pump Flow Capacity | 258.9 gal/min (980 L/min) |
Swing Mechanism
| Swing Torque | lb ft (204500 Nm) |
| Swing Speed | 6.5 rpm |
Weights
| Maximum Tool Weight (Over The Front) | 5291.1 lb (2400 kg) |
| Maximum Tool Weight (360 Degrees) | 4629.7 lb (2100 kg) |
Buckets
| Reference Bucket Capacity | 3.9 yd3 (3 m3) |
| Maximum Bucket Capacity | 7.1 yd3 (5.4 m3) |
Working Ranges
| Maximum Pin Height | 39.5 m |
| Maximum Horizontal Reach | 25.2 m |
