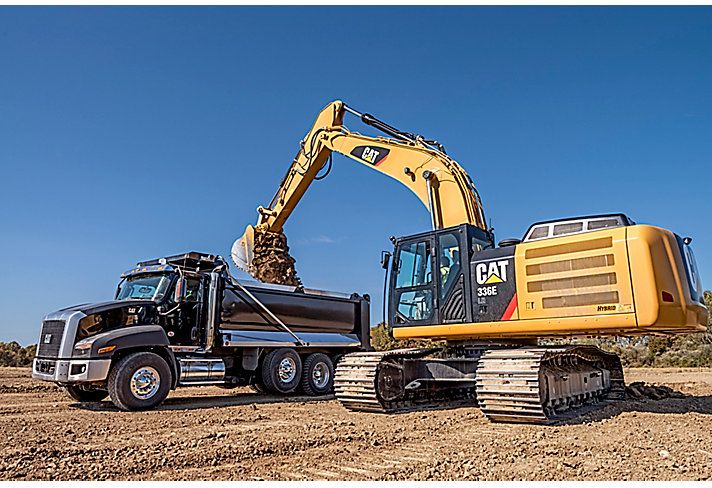

Caterpillar 336E H
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.65 ft in (11170 mm) |
| Shipping Height Of Unit | 12.01 ft in (3660 mm) |
| Max Cutting Height | 35.24 ft in (10740 mm) |
| Max Loading Height | 24.61 ft in (7500 mm) |
| Max Reach Along Ground | 38.46 ft in (11720 mm) |
| Max Vertical Wall Digging Depth | 20.71 ft in (6310 mm) |
| Max Digging Depth | 26.88 ft in (8190 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6500mm (21' 4'') / Stick 12' 10'' |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.62 ft in (11160 mm) |
| Max Cutting Height | 33.86 ft in (10320 mm) |
| Shipping Height Of Unit | 11.52 ft in (3510 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Max Reach Along Ground | 36.16 ft in (11020 mm) |
| Max Vertical Wall Digging Depth | 18.05 ft in (5500 mm) |
| Max Digging Depth | 24.58 ft in (7490 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6500mm (21' 4'') / Stick 10' 6'' |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Width To Outside Of Tracks | 11.29 ft in (3440 mm) |
| Length Of Track On Ground | 13.26 ft in (4040 mm) |
| Tail Swing Radius | 11.46 ft in (3490 mm) |
| Removal Counterweight Clearance | 4.01 ft in (1220 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Drawbar Pull | 67442.68 lb (300 kN) |
| Max Travel Speed | 3.11 mph (5 km/h) |
Engine
| Engine Make | 2236 |
| Engine Model | C9 |
| Net Power | 308 hp (229.7 kw) |
| Gross Power | 328 hp (244.6 kw) |
| Displacement | 567.6 cu in (9.3 L) |
Operational
| Operating Weight | 82000 lb (37194.6 kg) |
| Fuel Capacity | 163.8 gal (620 L) |
| Cooling System Fluid Capacity | 14.8 gal (56 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Engine Oil Capacity | 8.1 gal (30.5 L) |
| Swing Drive Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Relief Valve Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic Pump Flow Capacity | 74 gal/min (280.2 L/min) |
Swing Mechanism
| Swing Torque | 80.4 lb ft (109 Nm) |
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 1.3 yd3 (1 m3) |
| Maximum Bucket Capacity | 3.4 yd3 (2.6 m3) |
