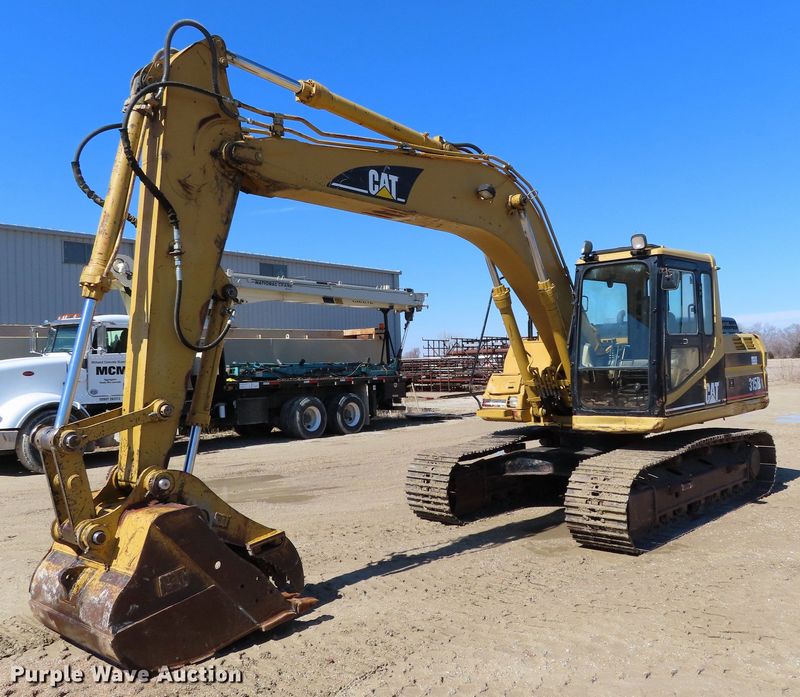

Caterpillar 315B L
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 27.89 ft in (8500 mm) |
| Max Loading Height | 19.46 ft in (5930 mm) |
| Max Reach Along Ground | 26.38 ft in (8040 mm) |
| Max Vertical Wall Digging Depth | 14.44 ft in (4400 mm) |
| Max Digging Depth | 17.43 ft in (5310 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick 1850mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 27.79 ft in (8470 mm) |
| Max Cutting Height | 28.66 ft in (8735 mm) |
| Shipping Height Of Unit | 9.13 ft in (2780 mm) |
| Max Loading Height | 20.18 ft in (6150 mm) |
| Max Reach Along Ground | 27.63 ft in (8420 mm) |
| Max Vertical Wall Digging Depth | 16.18 ft in (4930 mm) |
| Max Digging Depth | 18.72 ft in (5705 mm) |
| Boom/Stick Option (Hex) 2 | Boom / Stick 7'5" (2250mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 27.89 ft in (8500 mm) |
| Max Cutting Height | 29.24 ft in (8910 mm) |
| Max Loading Height | 20.74 ft in (6320 mm) |
| Shipping Height Of Unit | 9.39 ft in (2860 mm) |
| Max Reach Along Ground | 28.68 ft in (8740 mm) |
| Max Vertical Wall Digging Depth | 17.51 ft in (5335 mm) |
| Max Digging Depth | 19.87 ft in (6055 mm) |
| Boom/Stick Option (Hex) 3 | Boom / Stick 8'6" (2600mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Shipping Height Of Unit | 9.81 ft in (2990 mm) |
| Max Cutting Height | 29.43 ft in (8970 mm) |
| Max Loading Height | 21.04 ft in (6410 mm) |
| Max Reach Along Ground | 29.99 ft in (9140 mm) |
| Max Digging Depth | 21.51 ft in (6555 mm) |
| Boom/Stick Option (Hex) 4 | Boom / Stick 10'2" (3100mm) |
| Max Vertical Wall Dig Depth | 18.28 ft in (5570 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.45 ft in (2880 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 10.41 ft in (3170 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Removal Counterweight Clearance | 3.45 ft in (1050 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Drawbar Pull | 29480 lb (131.14 kN) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 5.75 psi (39.65 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3046T |
| Gross Power | 102 hp (76.1 kw) |
| Net Power | 99 hp (73.9 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 305 cu in (5 L) |
| Aspiration | Turbocharged |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.8 in (119.9 mm) |
| Engine Model | Cat 3046T Diesel Engine |
| Flywheel Power | 99 hp (73.9 kw) |
| Eec 80/1269 | 99 hp (73.9 kw) |
| Sae J1349 | 99 hp (73.9 kw) |
| Iso 9249 | 99 hp (73.9 kw) |
Operational
| Operating Weight | 36200 lb (16420.1 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 49.7 gal (188 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal (3 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 69.8 gal/min (264 L/min) |
Swing Mechanism
| Swing Torque | 28420 lb ft (38532.4 Nm) |
| Swing Speed | 10 rpm |
Weights
| Operating Weight | 37000 lb (16783 kg) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.1 yd3 (0.9 m3) |
Hydraulic System
| Pilot System - Maximum Flow | 4.5 gal/min |
| Pilot System - Maximum Pressure | 570 psi |
| Maximum Pressure - Travel | 4980 psi |
| Maximum Pressure - Swing | 3340 psi |
| Maximum Pressure - Implements | 4980 psi |
| Main Implement System - Maximum Flow (2x) | 70 gal/min |
| Boom Cylinder - Bore | 4.3 in (109.3 mm) |
| Boom Cylinder - Stroke | 47 in (1193.8 mm) |
| Stick Cylinder - Bore | 4.8 in (122 mm) |
| Stick Cylinder - Stroke | 52.4 in (1331 mm) |
Service Refill Capacities
| Cooling System | 5 gal (19 L) |
| Fuel Tank | 74 gal (280.2 L) |
| Final Drive - Each | 0.7 gal (2.7 L) |
| Hydraulic Tank | 27.3 gal (103.4 L) |
| Hydraulic System - Including Tank | 48.9 gal (185.2 L) |
| Engine Oil | 3.4 gal (12.9 L) |
| Swing Drive - Each | 0.8 gal (3.1 L) |
Drive
| Maximum Drawbar Pull | 29480 lb (13372 kg) |
| Travel Speed | 3.4 mph (5.5 km/h) |
