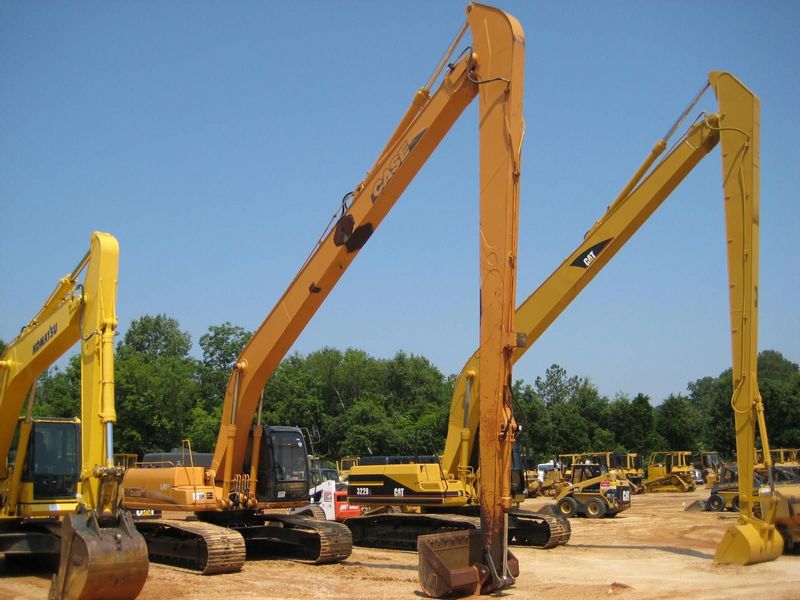

Case CX240 Long Reach
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 47.58 ft in (14500 mm) |
| Shipping Height Of Unit | 10.18 ft in (3100 mm) |
| Max Cutting Height | 44.95 ft in (13700 mm) |
| Max Loading Height | 37.87 ft in (11540 mm) |
| Max Reach Along Ground | 59.95 ft in (18270 mm) |
| Max Vertical Wall Digging Depth | 39.97 ft in (12180 mm) |
| Max Digging Depth | 47.97 ft in (14620 mm) |
| Boom/Stick Option (Hex) 1 | Boom 33'10" (10300mm)/ Stick 26'3" (8000mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Tail Swing Radius | 9.81 ft in (2990 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Undercarriage
| Shoe Size | 31.5 in (800 mm) |
| Ground Pressure | 5.8 psi (39.99 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 43006 lb (191.31 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | 6TAA-5904 |
| Gross Power | 180 hp (134.3 kw) |
| Net Power | 173 hp (129.1 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 461 lb ft (625.1 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 60568 lb (27473.2 kg) |
| Fuel Capacity | 90 gal (340.7 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Hydraulic System Fluid Capacity | 59.5 gal (225 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (238.3 kPa) |
| Hydraulic Pump Flow Capacity | 56.1 gal/min (212 L/min) |
Swing Mechanism
| Swing Speed | 10.4 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
