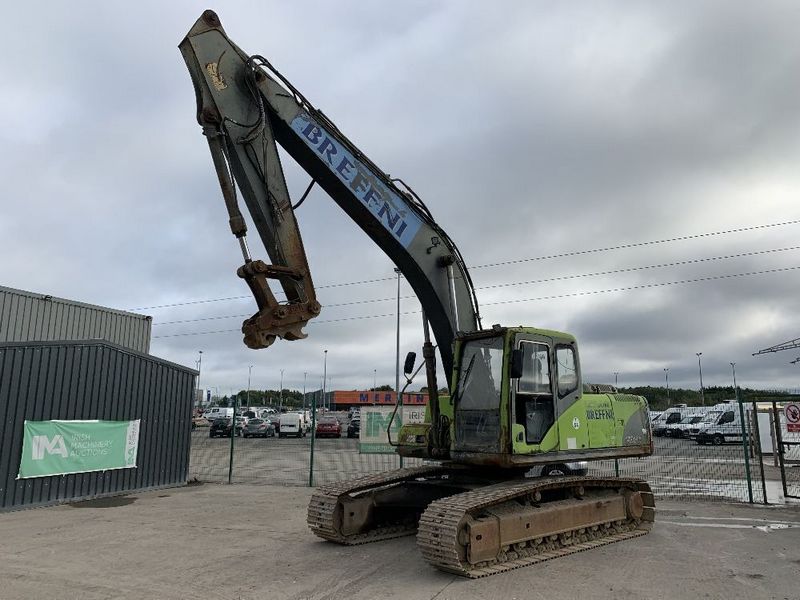

XCG 210LC-8
Browse All XCG or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.58 ft in (9625 mm) |
| Shipping Height Of Unit | 9.75 ft in (2970 mm) |
| Max Loading Height | 22.59 ft in (6885 mm) |
| Max Reach Along Ground | 32.05 ft in (9767 mm) |
| Max Digging Depth | 21.69 ft in (6611 mm) |
Dimensions
| Ground Clearance | 1.54 ft in (468 mm) |
| Width To Outside Of Tracks | 9.78 ft in (2980 mm) |
| Length Of Track On Ground | 11.95 ft in (3640 mm) |
| Tail Swing Radius | 9.42 ft in (2870 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | BB-6BG1T |
| Gross Power | 161 hp (120 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 396.7 cu in (6.5 L) |
Operational
| Operating Weight | 45415.3 lb (20600 kg) |
| Hydraulic System Relief Valve Pressure | 4641.3 psi (32000 kPa) |
| Hydraulic Pump Flow Capacity | 111 gal/min (420 L/min) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
