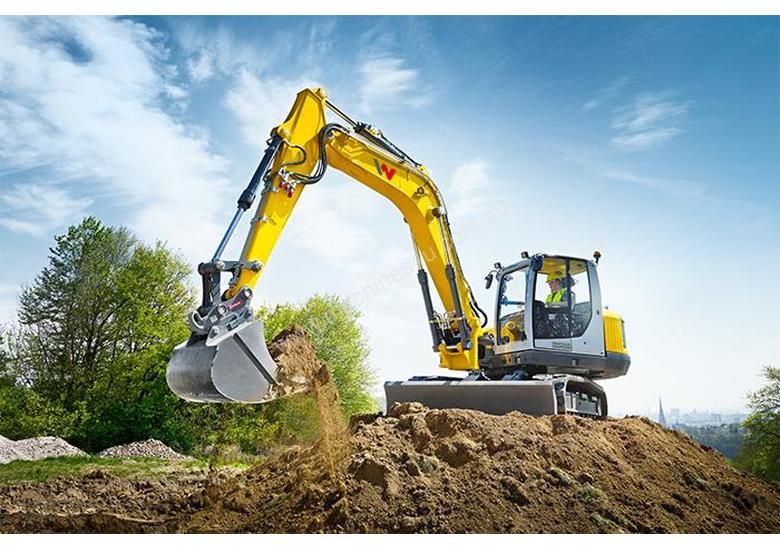

Wacker Neuson ET145
Browse All Wacker Neuson or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25.55 ft in (7787.64 mm) |
| Shipping Height Of Unit | 9.15 ft in (2786.38 mm) |
| Max Cutting Height | 28.06 ft in (8552.18 mm) |
| Max Loading Height | 19.51 ft in (5946.14 mm) |
| Max Reach Along Ground | 27.98 ft in (8526.79 mm) |
| Max Vertical Wall Digging Depth | 11.65 ft in (3550.92 mm) |
| Max Digging Depth | 17.99 ft in (5481.32 mm) |
| Boom/Stick Option (Hex) 1 | Rubber/steel track |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 25.5 ft in (7769.86 mm) |
| Max Cutting Height | 28.19 ft in (8590.29 mm) |
| Shipping Height Of Unit | 9.27 ft in (2824.48 mm) |
| Max Loading Height | 19.64 ft in (5984.24 mm) |
| Max Reach Along Ground | 27.94 ft in (8514.08 mm) |
| Max Vertical Wall Digging Depth | 11.52 ft in (3510.28 mm) |
| Max Digging Depth | 17.86 ft in (5443.22 mm) |
| Boom/Stick Option (Hex) 2 | Hybrid track |
Dimensions
| Ground Clearance | 1.58 ft in (480.06 mm) |
| Height To Top Of Cab | 9.15 ft in (2786.38 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2489.2 mm) |
| Length Of Track On Ground | 25.55 ft in (7787.64 mm) |
Undercarriage
| Shoe Size | 19.7 in (500.38 mm) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | 854F-E34TAWF |
| Gross Power | 73.9 hp (55.2 kw) |
| Power Measured @ | 2050 rpm |
| Displacement | 207.4 cu in (3.4 L) |
Operational
| Operating Weight | 36012 lb (16334.8 kg) |
| Fuel Capacity | 54.2 gal (205.2 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110.2 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 4931 psi (33998.1 kPa) |
| Hydraulic Pump Flow Capacity | 77.1 gal/min (291.9 L/min) |
