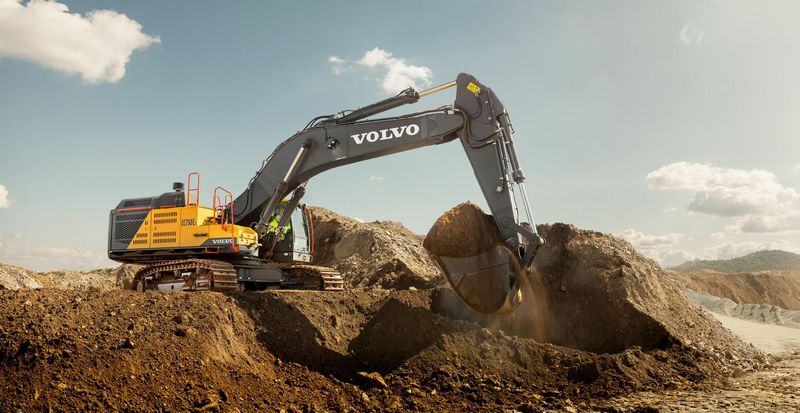

Volvo EC750E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 35.9 ft in (10940 mm) |
| Max Vertical Wall Digging Depth | 18.54 ft in (5650 mm) |
| Max Digging Depth | 23.66 ft in (7210 mm) |
| Min.Front Swing Radius | 16.84 ft in (5130 mm) |
| Max.Dumping Height | 22.97 ft in (7000 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 6.6 m, 21.8 ft in / Arm - 2.9 m, 9.6 ft in |
| Max Digging Reach | 37.6 ft in (11460 mm) |
| Max Digging Reach On Ground | 36.62 ft in (11160 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 40.79 ft in (12430 mm) |
| Max Vertical Wall Digging Depth | 22.12 ft in (6740 mm) |
| Max Digging Depth | 25.33 ft in (7720 mm) |
| Min.Front Swing Radius | 17.92 ft in (5460 mm) |
| Max.Dumping Height | 27.73 ft in (8450 mm) |
| Max Digging Reach On Ground | 40.36 ft in (12300 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 7.7 m, 25.3 ft in / Arm - 2.9 m, 9.6 ft in |
| Max Digging Reach | 41.25 ft in (12570 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 41.34 ft in (12600 mm) |
| Max Vertical Wall Digging Depth | 24.25 ft in (7390 mm) |
| Max Digging Depth | 27.47 ft in (8370 mm) |
| Max.Dumping Height | 28.38 ft in (8650 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 7.7 m, 25.3 ft in / Arm - 3.55 m, 11.8 ft in |
| Max Digging Reach | 43.08 ft in (13130 mm) |
| Max Digging Reach On Ground | 42.23 ft in (12870 mm) |
| Min.Front Swing Radius | 17.69 ft in (5390 mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 42.36 ft in (12910 mm) |
| Max Digging Depth | 29.6 ft in (9020 mm) |
| Max.Dumping Height | 29.43 ft in (8970 mm) |
| Max Digging Reach On Ground | 44.3 ft in (13500 mm) |
| Max Digging Reach | 45.12 ft in (13750 mm) |
| Min.Front Swing Radius | 17.82 ft in (5430 mm) |
| Boom/Stick Option (Hex) 4 | Boom - 7.7 m, 25.3 ft in / Arm - 4.2 m, 13.10 ft in |
| Max Vertical Wall Dig Depth | 26.28 ft in (8010 mm) |
Dimensions
| Tail Swing Radius | 13.59 ft in (4140 mm) |
| Counterweight Clearance | 4.95 ft in (1507 mm) |
| Overall Length | 40.03 ft in (12200 mm) |
| Track Length | 235.83 in (5990 mm) |
| Overall Width -Upper Structure | 14.08 ft in (4290 mm) |
| Overall Width Of Superstructure | 11.23 ft in (3420 mm) |
| Shoe Width | 2.14 ft in (650 mm) |
| Ground Clearance (Minimum) | 2.82 ft in (858 mm) |
| Overall Height (To Top Of Boom) | 15.93 ft in (4855 mm) |
| Overall Height (To Top Of Cab) | 11.55 ft in (3520 mm) |
Undercarriage
| Number Of Top Rollers Per Side | 3x2 |
| Shoe Width (Standard) | 35.44 in (900 mm) |
| Link Pitch | 10.26 in (260.4 mm) |
| Number Of Bottom Rollers Per Side | 8x2 |
Electrical System
| Alternator | 28/80 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 |
| Battery | 210 (Ah) |
Swing System
| Max - Slew Speed | 7 rpm |
| Max - Slew Torque | 203198 lb ft (275499.6 Nm) |
Engine
| Max Power | 1800 rpm |
| Number Of Cylinders | 6 |
| Rated Engine Speed | 1350 rpm |
| Engine Model | Volvo D16J |
| Net Power | 526 hp (392.3 kw) |
| Gross Power | 527 hp (393 kw) |
| Max Torque | 1895.6 lb ft (2570 Nm) |
| Displacement | 982.5 cu in (16.1 L) |
| Bore | 5.7 in (144 mm) |
| Stroke | 6.5 in (165 mm) |
Capacities
| Travel Reduction | 7.2 gal (27 L) |
| Slew Reduction | 3.6 gal (13.6 L) |
| Fuel Tank | 211.4 gal (800 L) |
| Hydraulic Tank | 92.5 gal (350 L) |
| Diesel Exhaust Fluid (Def) Tank | 21.2 gal (80 L) |
| Hydraulic System | 173.1 gal (655 L) |
| Engine Oil | 13.8 gal (52 L) |
| Engine Coolant | 17.5 gal (66 L) |
Performance
| Travel Speed Low | 1.9 mph (2.9 km/h) |
| Gradeability | 35 % |
| Travel Speed - High | 2.9 mph (4.6 km/h) |
| Drawbar Pull Force | 106109.9 lb (472 kN) |
Hydraulic System
| Slew Circuit | 3843 psi (26496.6 kPa) |
| Main Pump - Maximum Flow | 237.8 gal/min (900.2 L/min) |
| Pilot Pump - Maximum Flow | 9.1 gal/min (34.5 L/min) |
| Implement | 5192 psi (35797.6 kPa) |
| Travel Circuit | 711 psi (4902 kPa) |
| Pilot Circuit | 566 psi (3902.5 kPa) |
