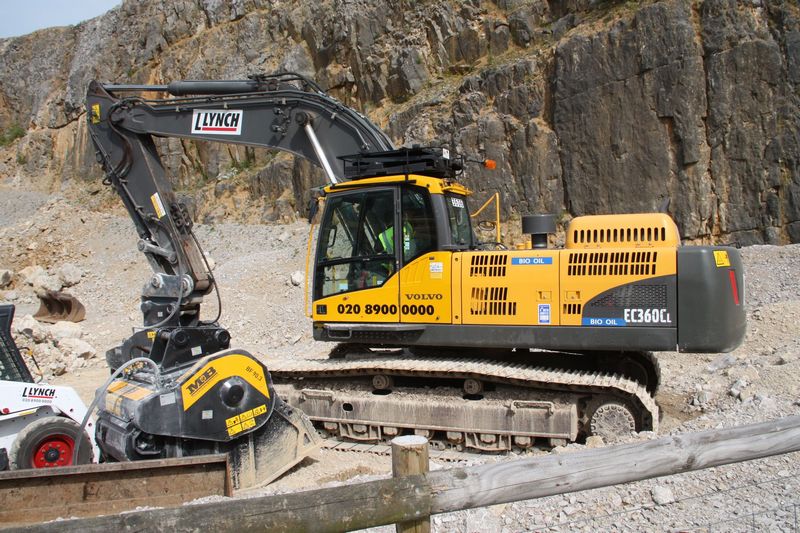

Volvo EC360C
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.62 ft in (11160 mm) |
| Shipping Height Of Unit | 11.75 ft in (3580 mm) |
| Max Cutting Height | 33.34 ft in (10160 mm) |
| Max Loading Height | 23.13 ft in (7050 mm) |
| Max Reach Along Ground | 34.26 ft in (10440 mm) |
| Max Vertical Wall Digging Depth | 16.77 ft in (5110 mm) |
| Max Digging Depth | 22.61 ft in (6890 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'2" (6450mm)/Stick 8'6" (2600mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.32 ft in (11070 mm) |
| Max Cutting Height | 33.86 ft in (10320 mm) |
| Shipping Height Of Unit | 11 ft in (3350 mm) |
| Max Loading Height | 23.76 ft in (7240 mm) |
| Max Reach Along Ground | 36 ft in (10970 mm) |
| Max Vertical Wall Digging Depth | 18.08 ft in (5510 mm) |
| Max Digging Depth | 24.58 ft in (7490 mm) |
| Boom/Stick Option (Hex) 2 | Boom 21'2" (6450mm)/Stick 10'6" (3200mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.49 ft in (11120 mm) |
| Max Cutting Height | 34.78 ft in (10600 mm) |
| Max Loading Height | 24.68 ft in (7520 mm) |
| Shipping Height Of Unit | 11.78 ft in (3590 mm) |
| Max Reach Along Ground | 38.13 ft in (11620 mm) |
| Max Vertical Wall Digging Depth | 20.15 ft in (6140 mm) |
| Max Digging Depth | 26.91 ft in (8200 mm) |
| Boom/Stick Option (Hex) 3 | Boom 21'2" (6450mm)/Stick 12'10" (3900mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 35.8 ft in (10910 mm) |
| Shipping Height Of Unit | 12.14 ft in (3700 mm) |
| Max Cutting Height | 33.04 ft in (10070 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Max Reach Along Ground | 33.63 ft in (10250 mm) |
| Max Digging Depth | 22.05 ft in (6720 mm) |
| Boom/Stick Option (Hex) 4 | Boom 20'4" (6200mm)/Stick 8'6" (2600mm) |
| Max Vertical Wall Dig Depth | 15.75 ft in (4800 mm) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 10.49 ft in (3197 mm) |
| Width To Outside Of Tracks | 11.62 ft in (3540 mm) |
| Length Of Track On Ground | 13.92 ft in (4240 mm) |
| Tail Swing Radius | 11.13 ft in (3390 mm) |
| Removal Counterweight Clearance | 3.97 ft in (1210 mm) |
Undercarriage
| Track Gauge | 8.99 ft in (2740 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Pressure | 7.7 psi (53.09 kPa) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 50 |
| Drawbar Pull | 57770 lb (256.98 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D12D EBE3 |
| Net Power | 247 hp (184.2 kw) |
| Gross Power | 265 hp (197.7 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 1088 lb ft (1475.2 Nm) |
| Displacement | 738 cu in (12.1 L) |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1275 rpm |
Operational
| Operating Weight | 86570 lb (39267.5 kg) |
| Fuel Capacity | 163.8 gal (620 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 132.1 gal (500 L) |
| Engine Oil Capacity | 11.1 gal (42 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 148 gal/min (560.3 L/min) |
Swing Mechanism
| Swing Speed | 9.7 rpm |
| Swing Torque | lb ft (119100 Nm) |
Buckets
| Reference Bucket Capacity | 3.1 yd3 (2.4 m3) |
