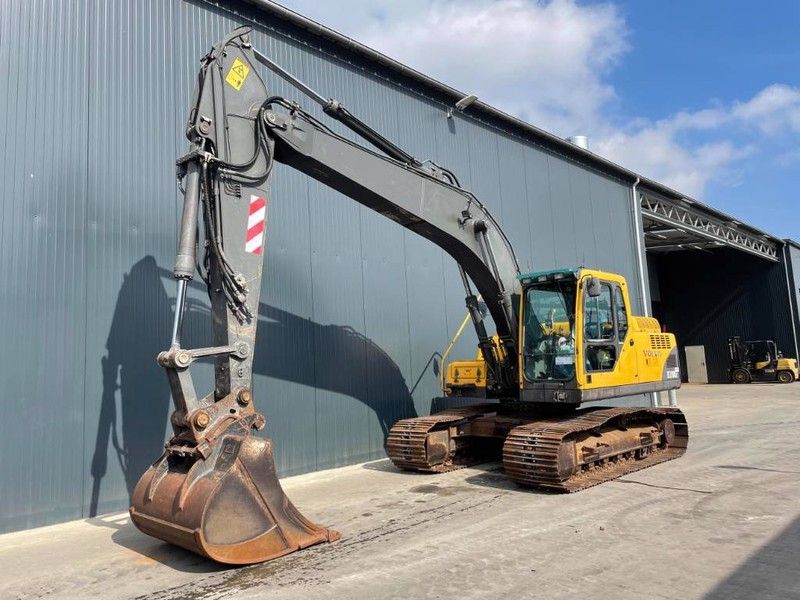

Volvo EC210BNC
Browse All Volvo or Hydraulic Excavator Models
Contents:
Undercarriage
| Shoe Size | 27.56 in (700 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 46 |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D6D EFE2 |
| Net Power | 143.5 hp (107 kw) |
| Gross Power | 159 hp (118.6 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 477.3 lb ft (647 Nm) |
| Displacement | 347.9 cu in (5.7 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1425 rpm |
Operational
| Operating Weight | 46076.7 lb (20900 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
| Cooling System Fluid Capacity | 7.3 gal (27.5 L) |
| Hydraulic System Fluid Capacity | 78 gal (295 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 5.1 gal/min (19 L/min) |
Swing Mechanism
| Swing Speed | 11.6 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 2.1 yd3 (1.6 m3) |
