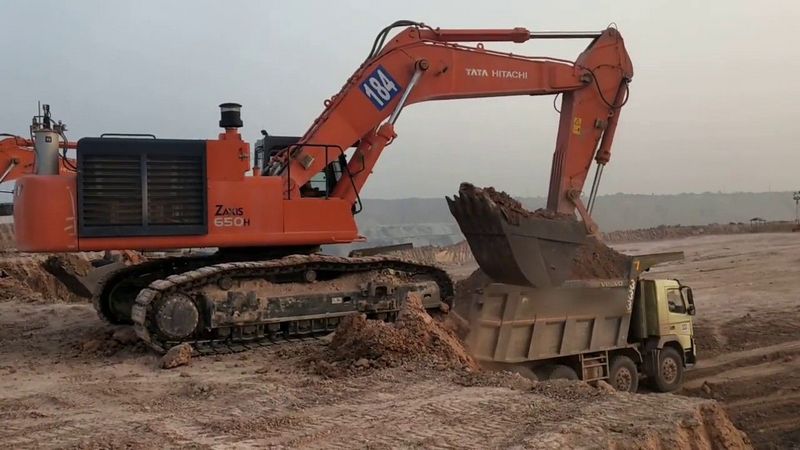

Tata Hitachi ZAXIS650LC
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 36.72 ft in (11190 mm) |
| Max Loading Height | 24.05 ft in (7330 mm) |
| Max Reach Along Ground | 37.73 ft in (11500 mm) |
| Max Vertical Wall Digging Depth | 17.33 ft in (5280 mm) |
| Max Digging Depth | 23.36 ft in (7120 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6800mm/Stick 2900mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 39.11 ft in (11920 mm) |
| Max Loading Height | 26.42 ft in (8050 mm) |
| Max Reach Along Ground | 42.66 ft in (13000 mm) |
| Max Vertical Wall Digging Depth | 24.22 ft in (7380 mm) |
| Max Digging Depth | 27.99 ft in (8530 mm) |
| Boom/Stick Option (Hex) 2 | Boom 7800mm/Stick 3600mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 40.16 ft in (12240 mm) |
| Max Loading Height | 27.33 ft in (8330 mm) |
| Max Reach Along Ground | 44.66 ft in (13610 mm) |
| Max Vertical Wall Digging Depth | 26.84 ft in (8180 mm) |
| Max Digging Depth | 30.02 ft in (9150 mm) |
| Boom/Stick Option (Hex) 3 | Boom 7800mm/Stick 4200mm |
Dimensions
| Ground Clearance | 2.83 ft in (860 mm) |
| Height To Top Of Cab | 11.32 ft in (3450 mm) |
| Width To Outside Of Tracks | 12.96 ft in (3950 mm) |
| Length Of Track On Ground | 15.06 ft in (4590 mm) |
| Tail Swing Radius | 12.64 ft in (3850 mm) |
| Removal Counterweight Clearance | 5.02 ft in (1530 mm) |
Undercarriage
| Track Gauge | 10.83 ft in (3300 mm) |
| Shoe Size | 25.6 in (650 mm) |
| Max Travel Speed | 3.05 mph (4.91 km/h) |
| Number Of Shoes Per Side | 47 |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 14.36 psi (99 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1XYSA-02 |
| Net Power | 462.7 hp (345 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1460.4 lb ft (1980 Nm) |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 145284.7 lb (65900 kg) |
| Fuel Capacity | 237.8 gal (900 L) |
| Cooling System Fluid Capacity | 15.1 gal (57 L) |
| Hydraulic System Fluid Capacity | 179.7 gal (680 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 15.1 gal (57 L) |
| Swing Drive Fluid Capacity | 2.8 gal (10.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 241 gal/min (912 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 3.8 yd3 (2.9 m3) |
| Minimum Bucket Capacity | 2.4 yd3 (1.8 m3) |
| Maximum Bucket Capacity | 4.4 yd3 (3.3 m3) |
