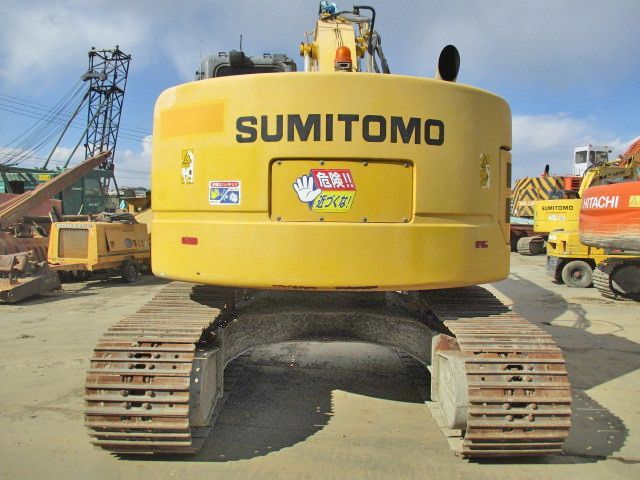

Sumitomo SH225X-3B
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 30.62 ft in (9330 mm) |
| Shipping Height Of Unit | 10.63 ft in (3240 mm) |
| Max Loading Height | 26.32 ft in (8020 mm) |
| Max Reach Along Ground | 31.93 ft in (9730 mm) |
| Max Vertical Wall Digging Depth | 19.92 ft in (6070 mm) |
| Max Digging Depth | 22.41 ft in (6830 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Width To Outside Of Tracks | 9.19 ft in (2800 mm) |
| Length Of Track On Ground | 11.06 ft in (3370 mm) |
| Tail Swing Radius | 5.52 ft in (1680 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AI-4HKIX |
| Gross Power | 153.5 hp (114.4 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 316.8 cu in (5.2 L) |
Operational
| Operating Weight | 52911 lb (24000 kg) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 100.4 gal/min (380 L/min) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
