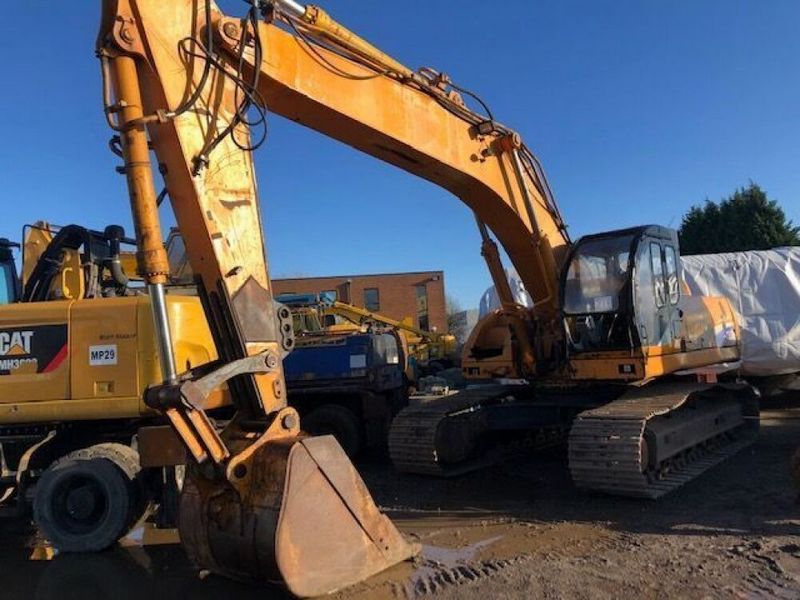

Samsung SE350LC-2
Browse All Samsung or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36 ft in (10970 mm) |
| Shipping Height Of Unit | 11.14 ft in (3395 mm) |
| Max Cutting Height | 37.41 ft in (11400 mm) |
| Max Loading Height | 26.88 ft in (8190 mm) |
| Max Reach Along Ground | 36.75 ft in (11200 mm) |
| Max Digging Depth | 24.94 ft in (7600 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'2" (6450mm) w/ Stick 10'2" (3100mm) |
Dimensions
| Ground Clearance | 1.76 ft in (535 mm) |
| Height To Top Of Cab | 10.52 ft in (3205 mm) |
| Width To Outside Of Tracks | 10.8 ft in (3290 mm) |
| Length Of Track On Ground | 13.19 ft in (4020 mm) |
| Tail Swing Radius | 10.8 ft in (3290 mm) |
| Removal Counterweight Clearance | 4.04 ft in (1230 mm) |
Undercarriage
| Track Gauge | 8.83 ft in (2690 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Ground Pressure | 9.53 psi (65.71 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | LTA 10-C |
| Gross Power | 247 hp (184.2 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 825 lb ft (1118.6 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 77602.8 lb (35200 kg) |
| Fuel Capacity | 138.7 gal (525 L) |
| Hydraulic System Relief Valve Pressure | 4552 psi (31385 kPa) |
| Hydraulic Pump Flow Capacity | 148 gal/min (560 L/min) |
Swing Mechanism
| Swing Speed | 9.6 rpm |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 1.4 yd3 (1.1 m3) |
| Maximum Bucket Capacity | 2.6 yd3 (2 m3) |
