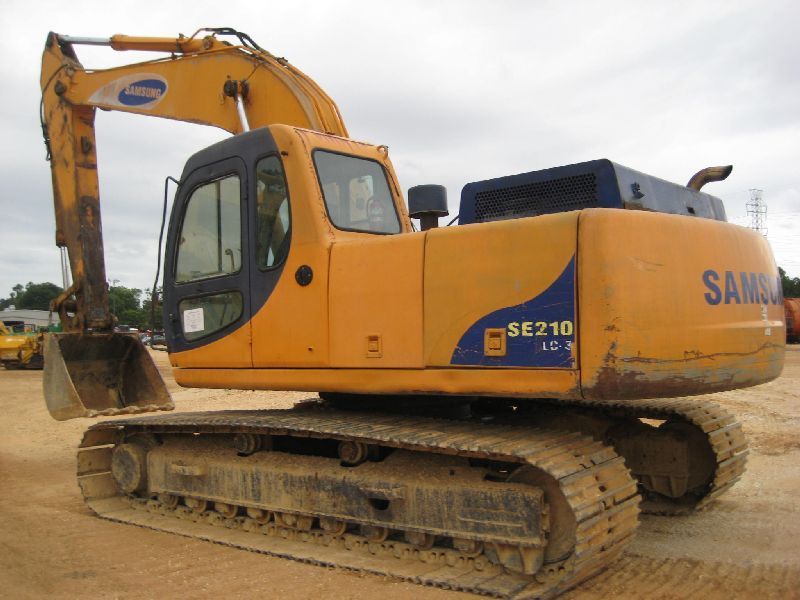

Samsung SE210LC-3
Browse All Samsung or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 42.03 ft in (12810 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 43.64 ft in (13300 mm) |
| Max Loading Height | 35.93 ft in (10950 mm) |
| Max Reach Along Ground | 51.55 ft in (15710 mm) |
| Max Digging Depth | 39.7 ft in (12100 mm) |
| Boom/Stick Option (Hex) 1 | Boom 29'0" (8850mm) w/ Stick 20'6" (6250mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 9.36 ft in (2850 mm) |
| Removal Counterweight Clearance | 3.4 ft in (1035 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Gross Power | 143 hp (106.7 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 456 lb ft (618.3 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 49736.3 lb (22560 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 105.7 gal/min (400 L/min) |
Swing Mechanism
| Swing Speed | 11.6 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
