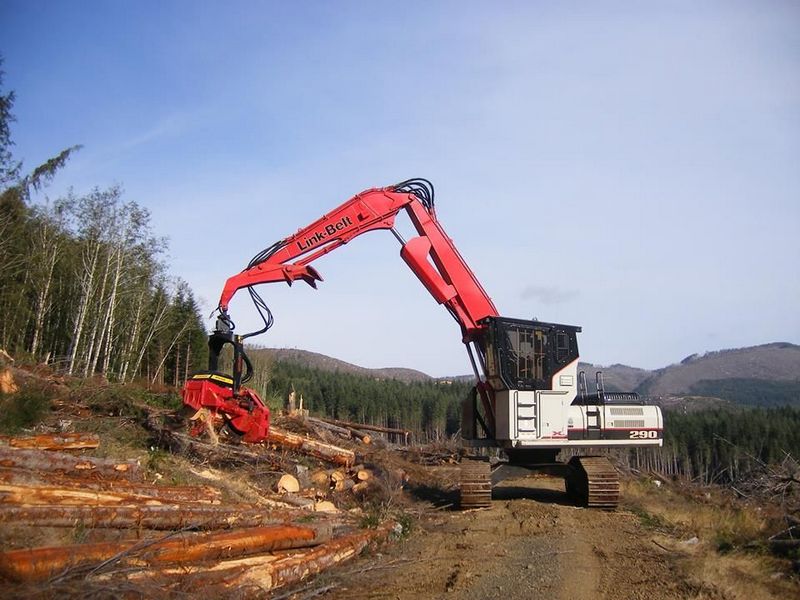

Link-Belt 290X2
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 34.29 ft in (10450 mm) |
| Shipping Height Of Unit | 10.7 ft in (3260 mm) |
| Max Cutting Height | 33.01 ft in (10060 mm) |
| Max Loading Height | 23.27 ft in (7090 mm) |
| Max Reach Along Ground | 34.45 ft in (10500 mm) |
| Max Vertical Wall Digging Depth | 20.08 ft in (6120 mm) |
| Max Digging Depth | 23.3 ft in (7100 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'2" (6150mm) / Stick 10'5" (3180mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 34.39 ft in (10480 mm) |
| Max Cutting Height | 32.58 ft in (9930 mm) |
| Shipping Height Of Unit | 10.96 ft in (3340 mm) |
| Max Loading Height | 22.77 ft in (6940 mm) |
| Max Reach Along Ground | 32.94 ft in (10040 mm) |
| Max Vertical Wall Digging Depth | 18.9 ft in (5760 mm) |
| Max Digging Depth | 21.56 ft in (6570 mm) |
| Boom/Stick Option (Hex) 2 | Boom 20'2" (6150mm) / Stick 8'8" (2650mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 34.36 ft in (10470 mm) |
| Max Cutting Height | 34.09 ft in (10390 mm) |
| Max Loading Height | 24.25 ft in (7390 mm) |
| Shipping Height Of Unit | 11.36 ft in (3460 mm) |
| Max Reach Along Ground | 36.06 ft in (10990 mm) |
| Max Vertical Wall Digging Depth | 22.05 ft in (6720 mm) |
| Max Digging Depth | 24.87 ft in (7580 mm) |
| Boom/Stick Option (Hex) 3 | Boom 20'2" (6150mm) / Stick 12'0" (3660mm) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Width To Outside Of Tracks | 11.16 ft in (3400 mm) |
| Length Of Track On Ground | 13.06 ft in (3980 mm) |
| Tail Swing Radius | 10.34 ft in (3150 mm) |
| Removal Counterweight Clearance | 3.91 ft in (1190 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.5 mph (5.64 km/h) |
| Ground Pressure | 6.24 psi (43.03 kPa) |
| Number Of Shoes Per Side | 50 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6HK1XYSS |
| Net Power | 207 hp (154.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 627 lb ft (850.1 Nm) |
| Displacement | 476 cu in (7.8 L) |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 65700 lb (29801.1 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Cooling System Fluid Capacity | 7.7 gal (29 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 10.1 gal (38 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 128.4 gal/min (486.1 L/min) |
Swing Mechanism
| Swing Speed | 10.2 rpm |
| Swing Torque | 68224 lb ft (92499.4 Nm) |
Buckets
| Reference Bucket Capacity | 1.9 yd3 (1.5 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
