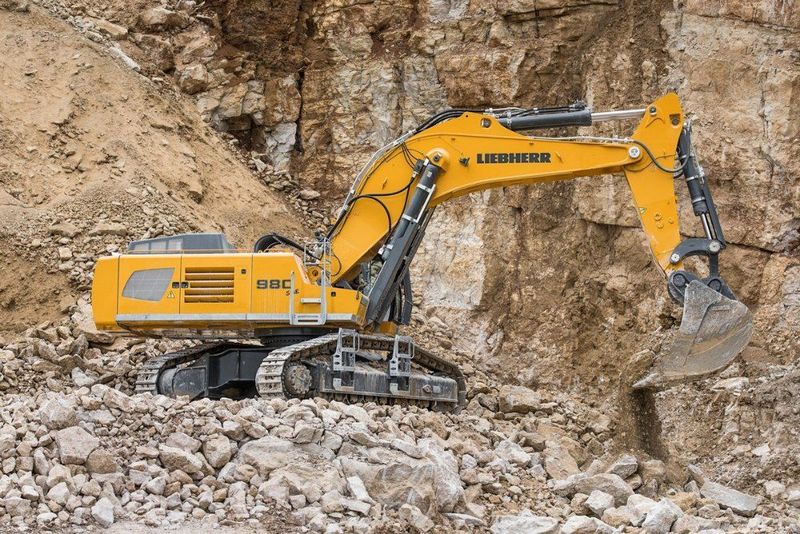

Liebherr R980 SME LITRONIC
Browse All Liebherr or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 23.11 ft in (7043.93 mm) |
| Maximum Reach At Ground Level | 40.4 ft in (12313.92 mm) |
| Max.Dumping Height | 28.3 ft in (8625.84 mm) |
| Breakout Force - Iso | 113760 lb (506.03 kN) |
| Digging Force - Iso | 95680 lb (425.61 kN) |
| Max. Teeth Height | 41.8 ft in (12740.64 mm) |
| Boom/Stick Option (Hex) 1 | Mono Boom SME- 23.7 ft in / stick length - 9.6 ft in |
Boom/Stick Option (Hex) 2
| Max Digging Depth | 35.3 ft in (10759.44 mm) |
| Max.Dumping Height | 28.8 ft in (8778.24 mm) |
| Boom/Stick Option (Hex) 2 | Mono Boom SME - 23.7 ft in / stick length - 10.10 |
| Breakout Force-Iso | 113760 lb (506.03 kN) |
| Digging Force - Iso | 88630 lb (394.25 kN) |
| Maximum Reach At Ground Level | 41.6 in (1056.65 mm) |
| Max. Teeth Height | 42.2 ft in (12862.56 mm) |
Dimensions
| Ground Clearance | 2.8 ft in (853.44 mm) |
| Height To Top Of Cab | 13 ft in (3962.4 mm) |
| Wheelbase | 15.9 ft in (4846.32 mm) |
| Undercarriage Width | 14.8 ft in (4511.04 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Drawbar Pull | 145002 lb (645.01 kN) |
| Max Travel Speed | 2.3 mph (3.71 km/h) |
Electrical System
| Engine Idling | Sensor controlled |
| Alternator | three-phase current 28 V /140 A |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 180 Ah / 12 V |
Engine
| Horsepower, Net-Iso 9249 | 563 hp (419.9 kw) |
| Horsepower, Net-Sae J1349 | 571 hp (425.8 kw) |
| Emission Tier Level | Tier 4 Final |
| Number Of Cylinders | 8 |
| Engine Model | D9508 A7 SCR |
| Cooling System | water-cooled |
| Air Cleaner | Dry-type |
| Power Measured @ | 1800 rpm |
| Max Torque | 2210 lb ft (2996.4 Nm) |
| Displacement | 986 cu in (16.2 L) |
| Torque Measured @ | 1300 rpm |
| Bore | 5 in (127 mm) |
| Stroke | 6.2 in (157.5 mm) |
Capacities
| Urea Tank | 48 gal (181.7 L) |
| Fuel Tank | 396 gal (1499.1 L) |
| Hydraulic System | 300 gal (1135.7 L) |
Operational
| Operating Weight | 223110 lb (101201.1 kg) |
Swing Mechanism
| Swing Torque | 217581 lb ft (295000.3 Nm) |
Buckets
| Maximum Bucket Capacity | 8.9 yd3 (6.9 m3) |
Hydraulic System
| System Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic System Tank | 142 gal (537.6 L) |
| Maxpumpflow | 262 gal/min (991.8 L/min) |
