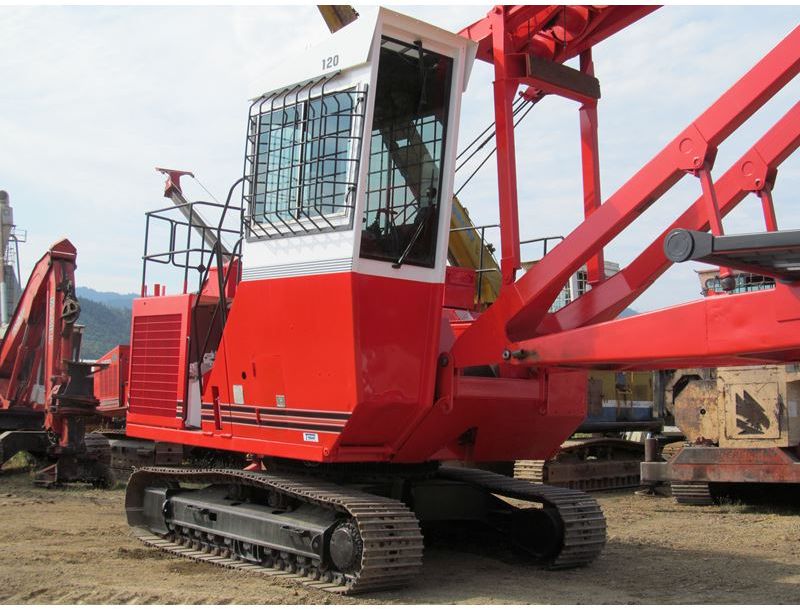

Madill H2200B
Contents:
Boom
| Max Reach W/ Head | 28.25 ft in (8610.6 mm) |
Dimensions
| Overall Width | 10.33 ft in (3148.59 mm) |
| Height To Top Of Cab | 12 ft in (3657.6 mm) |
Undercarriage
| Track Length | 14.75 ft in (4495.8 mm) |
| Ground Clearance | 2.5 ft in (762 mm) |
| Shoe Size | 24 in (609.6 mm) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 9.5 psi (65.51 kPa) |
Engine
| Engine Make | 2347 |
| Engine Model | QSL 9 Litre |
| Gross Power | 305 hp (227.5 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight | 62500 lb (28349.6 kg) |
| Fuel Capacity | 250 gal (946.4 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed | 3.2 mph (5.2 km/h) |
