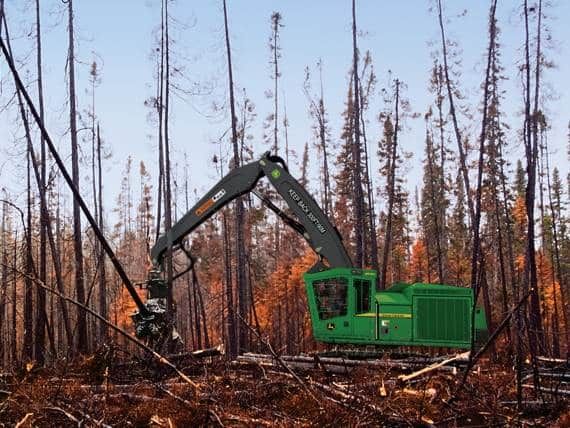

John Deere 953MH
Browse All John Deere or Harvester Models
Contents:
Dimensions
| Ground Clearance | 29.77 in (756 mm) |
| Height Over Cab | 139.77 ft in (3550 mm) |
| Length Of Tracks | 16.08 ft in (4900 mm) |
| Slewing Angle | 360 degrees |
| Super Structure Width | 10.01 ft in (3050 mm) |
| Tailswing Radius | 10.44 ft in (3180 mm) |
| Track Length On Ground | 150.79 ft in (3830 mm) |
| Width | 3050 mm |
Driveline
| Engine Model | PowerTech Plus 6090 PSS |
| Displacement | 549.3 cu in (9 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 329.9 hp (246 kw) |
| Engine Torque | 1026.7 lb ft (1392 Nm) |
| Rated Speed | 1900 rpm |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 9 |
| Track Shoe Width | 24.1 in (610 mm) |
Capacities
| Fuel Tank - Diesel | 285.4 gal (1080 L) |
| Alternator Output | 100 amps |
| Number Of Alternators | 2 |
Performance
| Travel Speed | 2.7 mph (4.2 km/h) |
| System Voltage | 24 V |
| Slew Speed | 4.8 rpm |
| Pump Flow | 140.6 gal/min (532 L/min) |
| Reference Harvesting Head | Waratah HTH624C |
| Felling Diameter | 31.9 in (810 mm) |
| Cutting Radius - Maximum | 30 ft in (9120 mm) |
| Cutting Radius - Minimum | 12.1 ft in (3680 mm) |
| Delimbing Diameter | 30 in (760 mm) |
| Cutting Swath Horizontal | 17.9 ft in (5440 mm) |
| Main Pump | Axial Piston |
Weights
| Weight - With Reference Head | 80433.5 lb (36484 kg) |
| Weight - Without Reference Head | 72805.5 lb (33024 kg) |
| Operating Weight | 80433.5 lb (36484 kg) |
