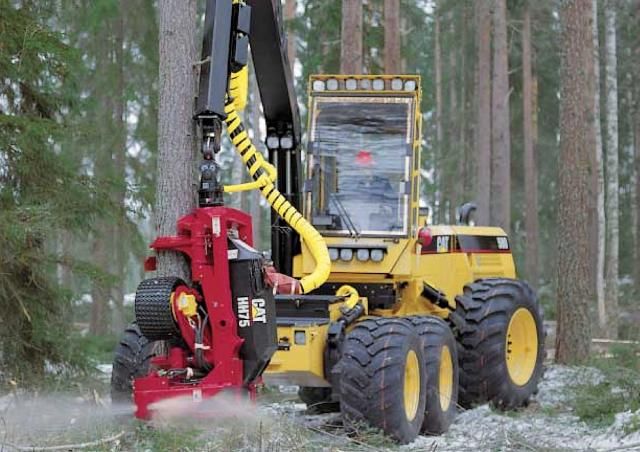

Caterpillar 570
Browse All Caterpillar or Harvester Models
Contents:
Boom
| Max Reach W/ Head | 3.32 ft in (1010 mm) |
Dimensions
| Shipping Length - Non Tilt | 22.28 ft in (6790 mm) |
| Overall Width | 9.13 ft in (2780 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
Undercarriage
| Ground Clearance | 4 ft in (1219 mm) |
Engine
| Engine Model | 3126 DITA Diesel Engine |
| Net Power | 154 hp (114.9 kw) |
| Gross Power | 163 hp (121.6 kw) |
| Displacement | 439.4 cu in (7.2 L) |
Operational
| Operating Weight | 36332.2 lb (16480 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Engine Oil Capacity | 8 gal (30 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Max Speed | 11.2 mph (18 km/h) |
| Transmission Type | Fully Hydrostatic |
Drive System
| Tire Size - Front | 600/65-34 14PR |
| Tire Size - Rear | 600/65-34 14PR |
