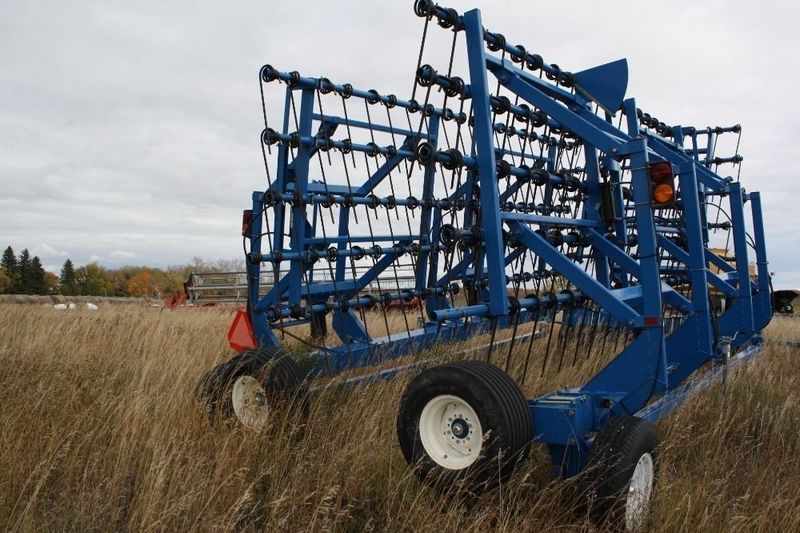

Brandt Contour Commander 50
Contents:
Dimensions
| Overall Length | 43.5 in (13258.8 mm) |
| Transport Width | 13.17 ft in (4014.22 mm) |
| Transport Height | 12.67 ft in (3861.82 mm) |
| Wing Tires | 9.5L x 15 |
| Pto Power Required Per Width Ft. | 3 hp (2.24 kw) |
| Max Weight | 10555 lb (4787.67 kg) |
| Main Frame Tires | 16.5L x 16.1 |
Frame
| Working Width | 50 ft in (15.3 m) |
| Main Beam Size | 8" x 8", 3/16" wall |
| Frame Clearance - Wing | 28 in (711.2 mm) |
| Frame Clearance - Center | 22 in (558.8 mm) |
Harrow
| Tine Adjustment | Manual (Standard) or Hydraulic (Optional) |
| Tine Size | 0.6 in (14.3 mm) |
| Tine Spacing | 2.4 in (61 mm) |
| Section Width | 10' |
| Number Of Bars | 5 |
| Down Pressure | 1900 lb (861.9 kg) |
| Tine Angle - Min | 45 degrees |
| Tine Angle - Max | 90 degrees |
