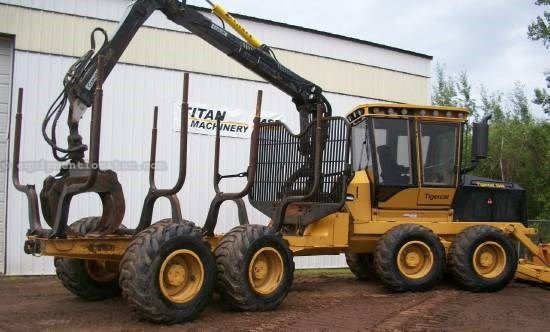

Tigercat 1045
Contents:
Dimensions
| Length | 31.58 ft in (9625 mm) |
| Width Over Tires | 8.67 ft in (2640 mm) |
| Height To Top Of Crane | 11.75 ft in (3580 mm) |
| Ground Clearance | 2.27 ft in (690 mm) |
| Length Of Bunk Area | 8.54 ft in (2600 mm) |
Engine
| Engine Make | 2345 |
| Engine Model | 906 Tier III |
| Power | 201 hp (149.9 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight - 8wd | 35714.9 lb (16200 kg) |
| Fuel Capacity | 55 gal (208 L) |
| Hydraulic System Fluid Capacity | 33.9 gal (128 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Front/Rear Tire Size - 6wd | 700/55x34 / 700/50x26.5 |
| Front/Rear Tire Size - 8wd | 600/55 x 26.5 |
Transmission
| Transmission Type | Hydrostatic 2-speed gearbox |
| Max Speed | 15 mph (24.2 km/h) |
Hydraulic
| Pump Type | variable displacement axial piston |
Bunk
| Load Weight - 8wd | 24250 lb (10999.7 kg) |
| Load Area | 43.1 ft2 (4 m2) |
Crane
| Crane Type | Cranab FC105 with telescopic stick |
| Max Reach | 24.7 ft in (7500 mm) |
| Gross Lift Torque | 77450 lb ft (105008.2 Nm) |
| Gross Slew Torque | 19100 lb ft (25896.2 Nm) |
