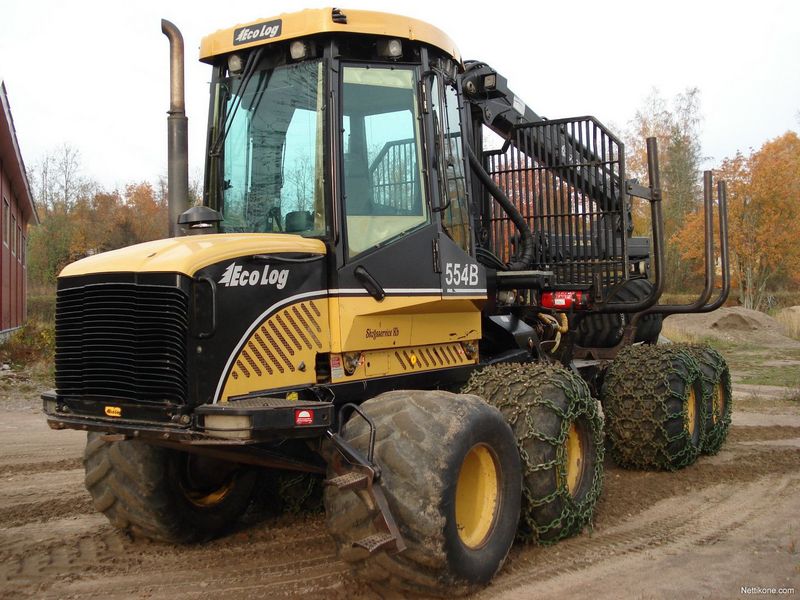

Eco Log 554B
Contents:
Dimensions
| Length | 27.03 ft in (8237 mm) |
| Width Over Tires | 8.86 ft in (2700 mm) |
| Height To Top Of Crane | 11.71 ft in (3569 mm) |
| Ground Clearance | 1.99 ft in (604 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054E |
| Power | 130 hp (97 kw) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight - 8wd | 26455.5 lb (12000 kg) |
| Fuel Capacity | 39.1 gal (148 L) |
| Hydraulic System Fluid Capacity | 25.1 gal (95 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Front/Rear Tire Size - 8wd | 710/50x22.5 |
Transmission
| Transmission Type | Hydrostatic Mechanical |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 15.6 mph (25 km/h) |
Bunk
| Load Weight - 8wd | 22046.3 lb (10000 kg) |
| Load Area | 41 ft2 (3.8 m2) |
Crane
| Max Reach | 32.9 ft in (10000 mm) |
