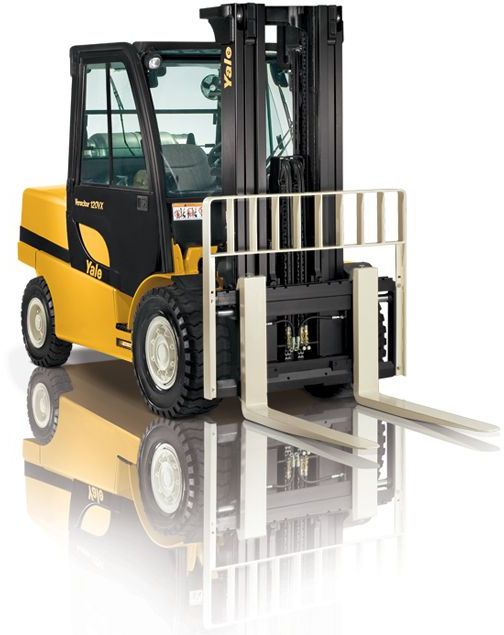

Yale GP080-90VX
Contents:
Dimensions
| Length To Fork Face | 9.66 ft in (2943.85 mm) |
| Overall Width | 4.88 ft in (1485.9 mm) |
| Overall Height - Mast Lowered | 13.92 ft in (4241.8 mm) |
| Height To Top Of Overhead Guard | 7.42 ft in (2260.6 mm) |
| Max Fork Height | 18.17 ft in (5537.2 mm) |
| Turning Radius | 8.44 ft in (2570.48 mm) |
Mast
| Number Of Mast Sections | 3 |
| Load Capacity | 9000 lb (4082.34 kg) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Displacement | 262 cu in (4.3 L) |
| Fuel Type | Gas/LPG |
Operational
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15.2 mph (24.5 km/h) |
