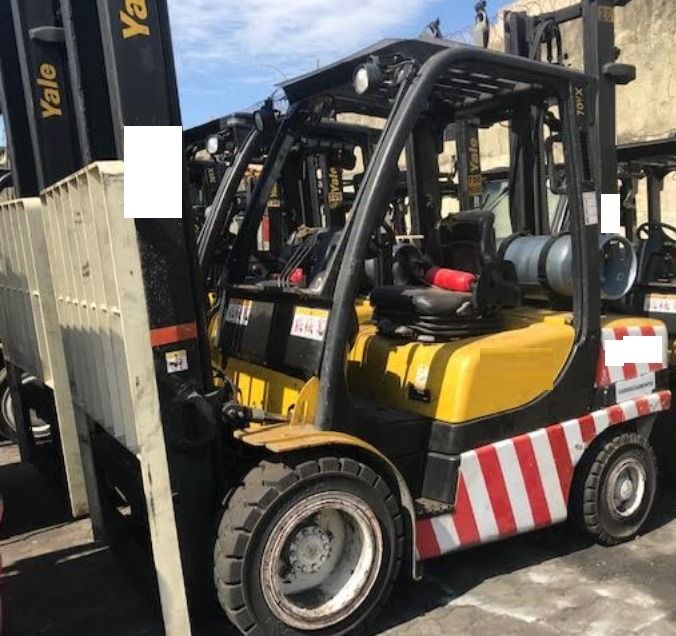

Yale GP070VX
Contents:
Dimensions
| Length To Fork Face | 8.97 ft in (2733.06 mm) |
| Overall Width | 3.92 ft in (1193.82 mm) |
| Overall Height - Mast Lowered | 10.5 ft in (3200.4 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2184.42 mm) |
| Max Fork Height | 19.09 ft in (5816.6 mm) |
| Turning Radius | 7.81 ft in (2379.97 mm) |
| Right Angle Stack | 9.39 ft in (2860.03 mm) |
Mast
| Load Capacity | 7000 lb (3175.15 kg) |
| Number Of Mast Sections | 3 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2374 |
| Displacement | 146.5 cu in (2.5 L) |
| Fuel Type | Gas/LPG |
Operational
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.1 mph (21.1 km/h) |
