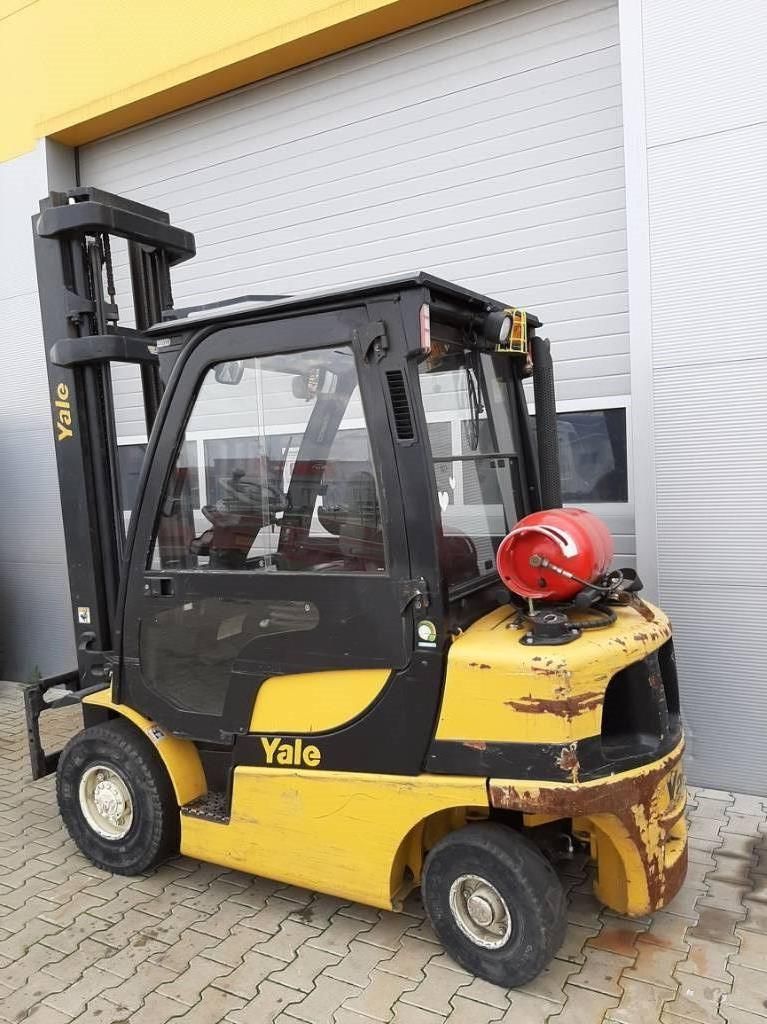

Yale GLP 25 VX
Contents:
Dimensions
| Length To Fork Face | 8.4 ft in (2559 mm) |
| Overall Width | 3.8 ft in (1157 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 4.22 in (107 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Turning Radius | 7.28 ft in (2216 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 5511.56 lb (2500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 106.3 ft/min (32.4 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | FE |
| Power | 44 hp (32.8 kw) |
| Torque | 91.5 lb ft (124 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 122.1 cu in (2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 8875.9 lb (4026 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.7 mph (17.1 km/h) |
