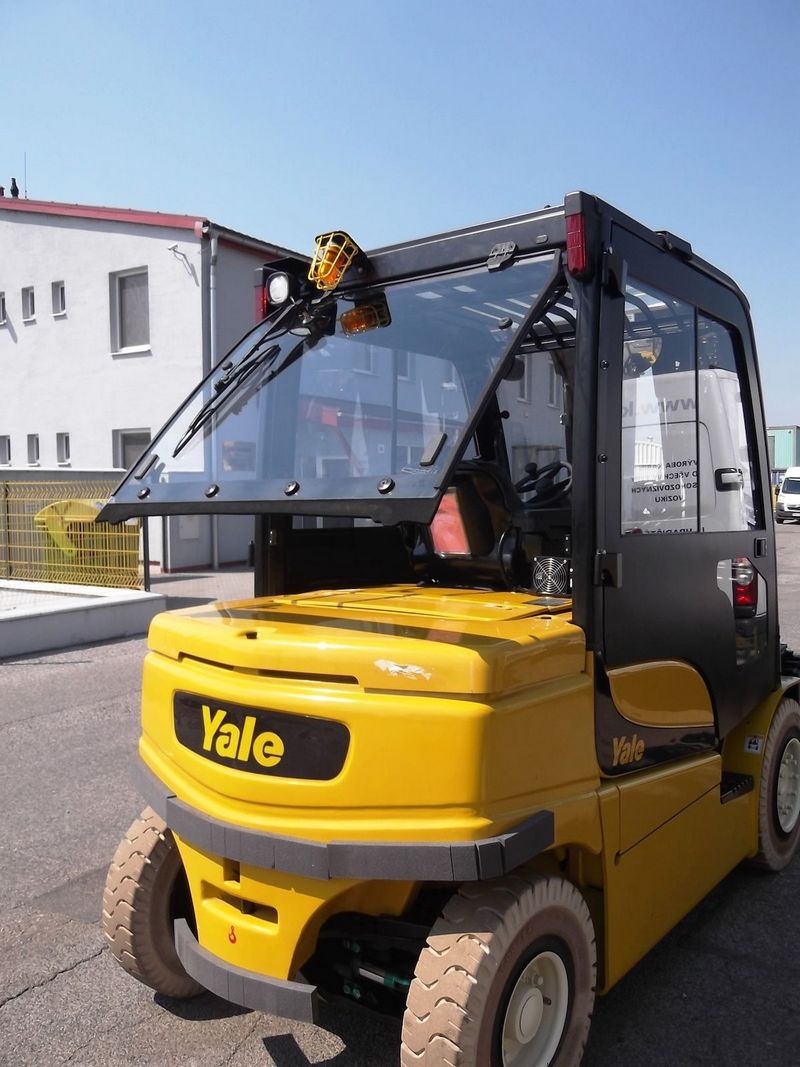

Yale 40DS-7
Contents:
Dimensions
| Length To Fork Face | 10.26 ft in (3125 mm) |
| Overall Width | 5.83 ft in (1776 mm) |
| Overall Height - Mast Lowered | 7.29 ft in (2220 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height To Top Of Overhead Guard | 7.35 ft in (2240 mm) |
| Max Fork Height | 13.9 ft in (4236 mm) |
| Turning Radius | 9.29 ft in (2830 mm) |
Mast
| Mast Tip Forward | 8 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 1476.39 ft/min (450 m/min) |
| Load Capacity | 88184.9 lb (40000 kg) |
| Load Center | 23.63 in (600 mm) |
| Lift Speed | 1968.52 ft/min (600 m/min) |
Engine
| Engine Make | 2247 |
| Engine Model | MHI/S6S-DT |
| Power | 87.2 hp (65 kw) |
Operational
| Operating Weight | 14294.8 lb (6484 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15.8 mph (25.4 km/h) |
