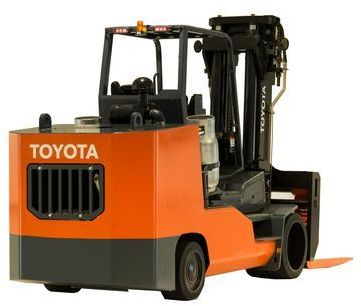

Toyota THDE2200-24
Contents:
Dimensions
| Length To Fork Face | 10.81 ft in (3294.9 mm) |
| Overall Width | 5.25 ft in (1600 mm) |
| Overall Height - Mast Lowered | 8.17 ft in (2489.2 mm) |
| Wheelbase | 6.25 ft in (1905 mm) |
| Ground Clearance | 4.28 in (108.7 mm) |
| Height To Top Of Overhead Guard | 7.8 ft in (2376.7 mm) |
| Max Fork Height | 8.24 ft in (2510 mm) |
| Gradeability | 18.7 % |
| Right Angle Stack | 11.68 ft in (3557.5 mm) |
| Turning Radius | 9.16 ft in (2790.7 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Load Center | 24 in (609.6 mm) |
| Lower Speed | 54.14 ft/min (16.5 m/min) |
| Lift Speed | 34.65 ft/min (10.56 m/min) |
| Load Capacity | 22000 lb (9979.04 kg) |
| Max Fork Spread | 48.35 in (1227.91 mm) |
Electrical System
| Battery Weight | 6200 lb (2812.3 kg) |
| Battery Capacity | 1125 Ah |
| Traction Motor | 42.5 hp (31.7 kw) |
| Pump Motor | 32.2 hp (24.1 kw) |
| Voltage | 36 V |
| Batteries | 2 |
Engine
| Engine Make | TOYOTA |
Operational
| Operating Weight | 49840 lb (22607.1 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Drawbar Pull | 5568 lb (2525.7 kg) |
Transmission
| Max Speed - Forward | 4.6 mph (7.5 km/h) |
| Max Speed - Reverse | 5.7 mph (9.2 km/h) |
Hydraulic
| Main Pump Flow Standard | 20.7 gal/min (78 L/min) |
| Maximum Operating Pressure | 2250 psi (15513.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
