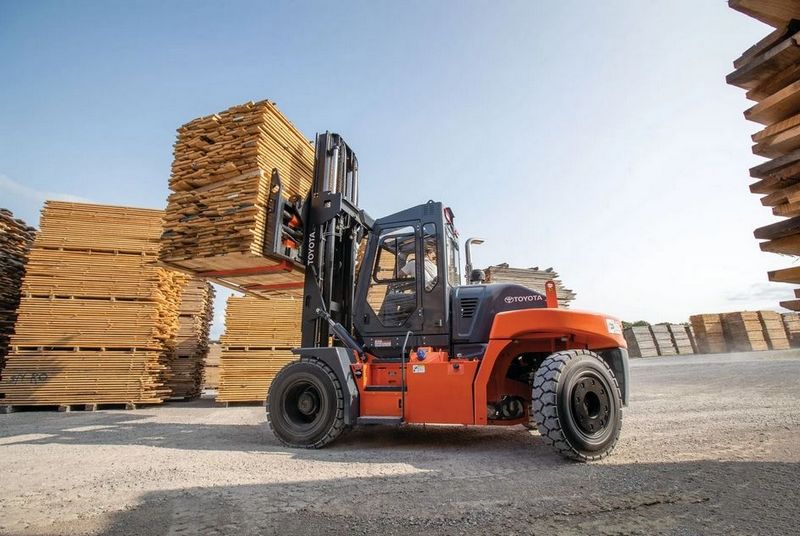

Toyota THD9250S-48
Contents:
Dimensions
| Length To Fork Face | 23.25 ft in (7086.6 mm) |
| Overall Width | 13.75 ft in (4191 mm) |
| Overall Height - Mast Lowered | 16.75 ft in (5105.4 mm) |
| Aisle Width | 31.15 ft in (9494.52 mm) |
| Gradeability | 12.1 % |
| Right Angle Stack | 27.32 ft in (8326.13 mm) |
Mast
| Lift Speed | 43.9 ft/min (13.39 m/min) |
| Load Capacity | 92500 lb (41957.3 kg) |
Operational
| Primarylocation | outdoor |
| Max Speed | 20 mph (32.2 km/h) |
