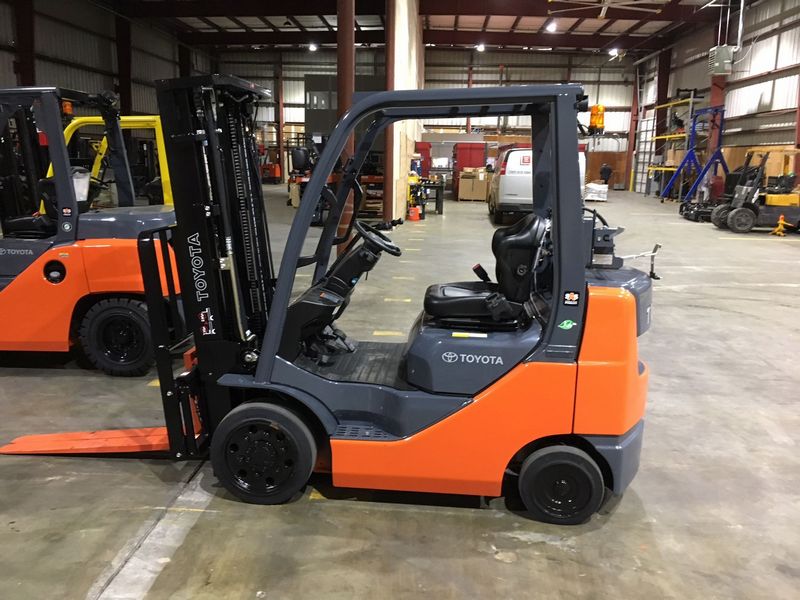

Toyota 8FGCU25
Contents:
Dimensions
| Length To Fork Face | 7.81 ft in (2379.98 mm) |
| Overall Width | 3.5 ft in (1064.26 mm) |
| Height To Top Of Overhead Guard | 6.73 ft in (2050 mm) |
| Turning Radius | 6.47 ft in (1971.04 mm) |
Mast
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 124 ft/min (37.8 m/min) |
| Load Center | 23.63 in (600 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 4Y-ECS |
| Power | 51 hp (38.1 kw) |
| Torque | 118.1 lb ft (160 Nm) |
| Power Measured @ | 2570 rpm |
| Displacement | 136 cu in (2.3 L) |
| Torque Measured @ | 2100 rpm |
Operational
| Operating Weight | 8002.8 lb (3630 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17.1 km/h) |
| Fuel Capacity | 11.9 gal (45 L) |
| Hydraulic System Fluid Capacity | 20 gal (75.8 L) |
| Hydraulic System Relief Valve Pressure | 2275 psi (15685.6 kPa) |
Performance
| Drawbar Pull Max -Full Load | 40785.6 lb (18500 kg) |
| Drawbar Pull Max -No Load | 17196.1 lb (7800 kg) |
