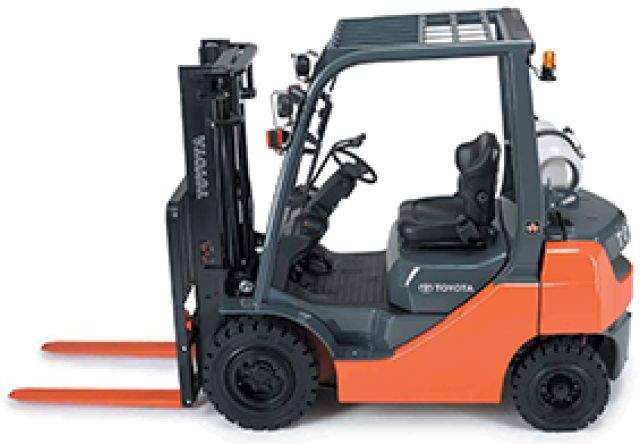

Toyota 8FDU15
Contents:
Dimensions
| Length To Fork Face | 7.32 ft in (2230.12 mm) |
| Overall Width | 3.51 ft in (1069.34 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2145 mm) |
| Wheelbase | 4.88 ft in (1485 mm) |
| Ground Clearance | 3.75 in (95 mm) |
| Height To Top Of Overhead Guard | 6.83 ft in (2080 mm) |
| Max Fork Height | 10.95 ft in (3335 mm) |
| Gradeability | 45 % |
| Right Angle Stack | 7.68 ft in (2339.34 mm) |
| Turning Radius | 6.34 ft in (1930 mm) |
Mast
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 2976.25 lb (1350 kg) |
| Lift Speed | 1280 ft/min (390.15 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Max Fork Spread | 40.16 in (1020 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | TOYOTA |
| Engine Model | 1ZS |
| Power | 53 hp (39.6 kw) |
| Torque | 128.4 lb ft (174 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 110 cu in (1.9 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 5511.6 lb (2500 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.5 mph (18.6 km/h) |
| Drawbar Pull | 4034.5 lb (1830 kg) |
| Fuel Capacity | 11.9 gal (45 L) |
Transmission
| Travelspeeds(Frwd)Speed Range | 1 |
| Travelspeeds(Backwrd)Speed Range | 1 |
| Transmission Type | Powershift |
| Max Speed - Forward | 11.5 mph (18.6 km/h) |
| Max Speed - Reverse | 11.5 mph (18.6 km/h) |
Tires
| Standard_Rear | 5.00-8-8PR |
| Standard_Option_Front | 6.50-10-10PR |
Hydraulic
| Main Pump Flow Standard | 17 gal/min (64.4 L/min) |
| Maximum Operating Pressure | 2275 psi (15685.6 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
