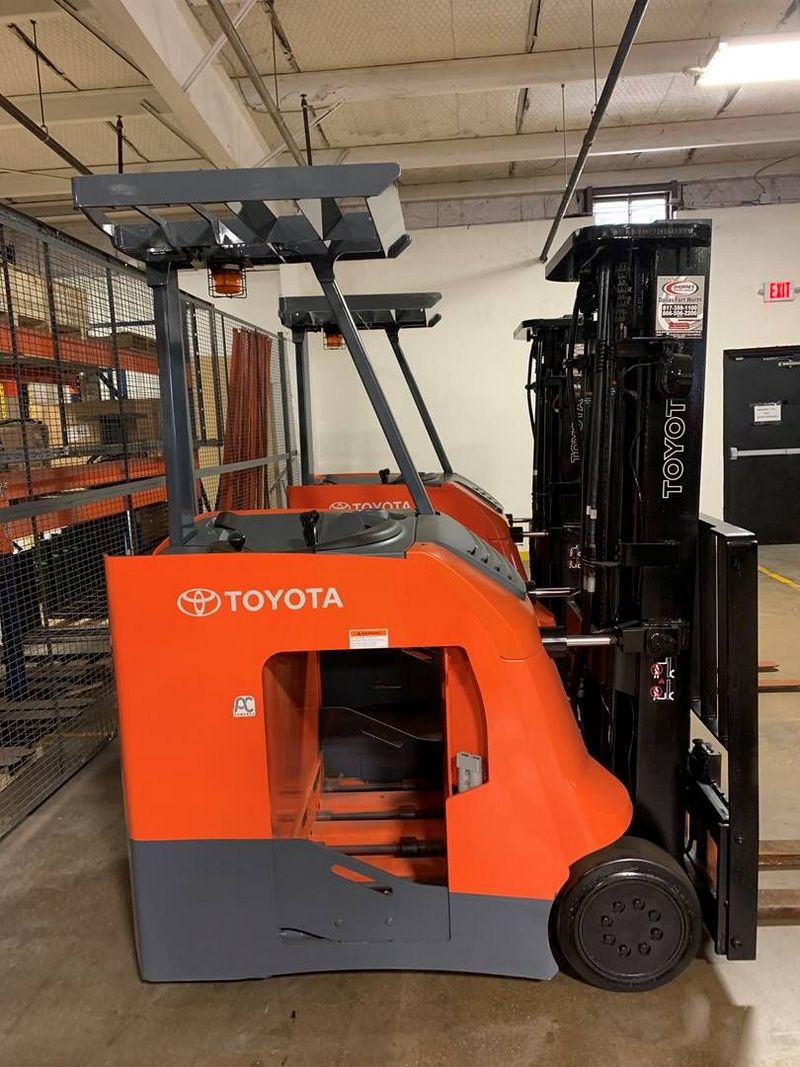

Toyota 8BNCU15/18.5
Contents:
Dimensions
| Length To Fork Face | 5.88 ft in (1791 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108 mm) |
| Wheelbase | 4.2 ft in (1280 mm) |
| Ground Clearance | 4.02 in (102 mm) |
| Height To Top Of Overhead Guard | 7.34 ft in (2235 mm) |
| Max Fork Height | 15.67 ft in (4775 mm) |
| Gradeability | 15 % |
| Right Angle Stack | 5.9 ft in (1798 mm) |
| Turning Radius | 4.85 ft in (1476 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 5 degrees |
| Max Fork Spread | 188 in (4775.2 mm) |
| Lift Speed | 70.08 ft/min (21.36 m/min) |
| Lower Speed | 100.01 ft/min (30.48 m/min) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Load Center | 24 in (609.6 mm) |
Electrical System
| Motor Hydrostatic Power Steering | Permanent Magnet DC |
| Motor Load Handling (Hydraulic) | 14.1 hp (10.6 kw) |
| Battery Weight | 2299.5 lb (1043 kg) |
| Motor Drive Type | 4 Pole Induction AC 3-Phase |
| Motor Drive | 7 hp (5.3 kw) |
| Control Drive | Transistor – MOSFET |
| Battery Height | 32.3 in (820.5 mm) |
| Control Power Steering | Contactor |
| Battery Length | 38.5 in (977.9 mm) |
| Battery Width | 18.5 in (469.9 mm) |
| Control Load Handling | Transistor – MOSFET |
| Battery Capacity | 930 Ah |
| Voltage | 36 V |
Engine
| Engine Make | TOYOTA |
Operational
| Operating Weight | 6865.2 lb (3114 kg) |
| Tire Type | Solid Rubber |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
Transmission
| Max Speed - Reverse | 7.5 mph (12.1 km/h) |
| Max Speed - Forward | 7.5 mph (12.1 km/h) |
Hydraulic
| Auxiliary Flow Rate | 10 gpm |
| Maximum Operating Pressure | 2000 psi (13789.6 kPa) |
Brakes
| Pedals | Plugging / Electric Disc Brake |
