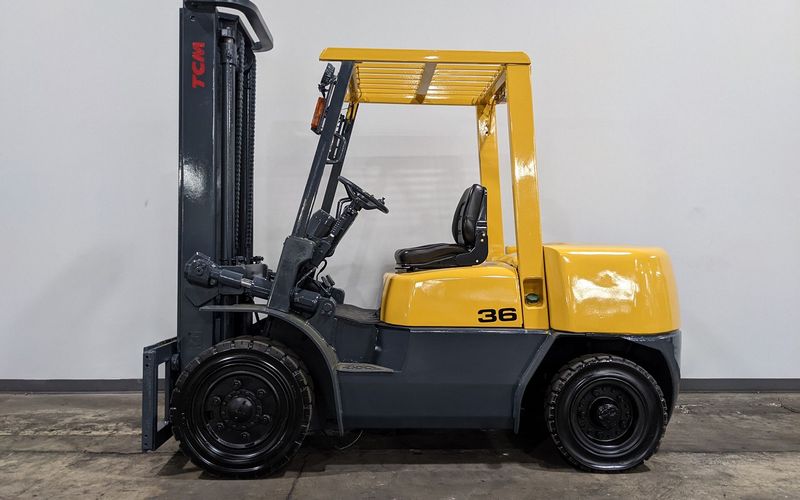

TCM FHD36Z2
Contents:
Dimensions
| Overall Width | 4.37 ft in (1331.07 mm) |
| Overall Height - Mast Lowered | 6.85 ft in (2085.36 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 8.54 ft in (2600.86 mm) |
Mast
| Lift Speed | 86.6 ft/min (26.4 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 8000 lb (3628.74 kg) |
Engine
| Engine Model | 4JG2 |
| Power | 66 hp (49.3 kw) |
| Displacement | 187 cu in (3.1 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 12220 lb (5542.9 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15 mph (24.2 km/h) |
