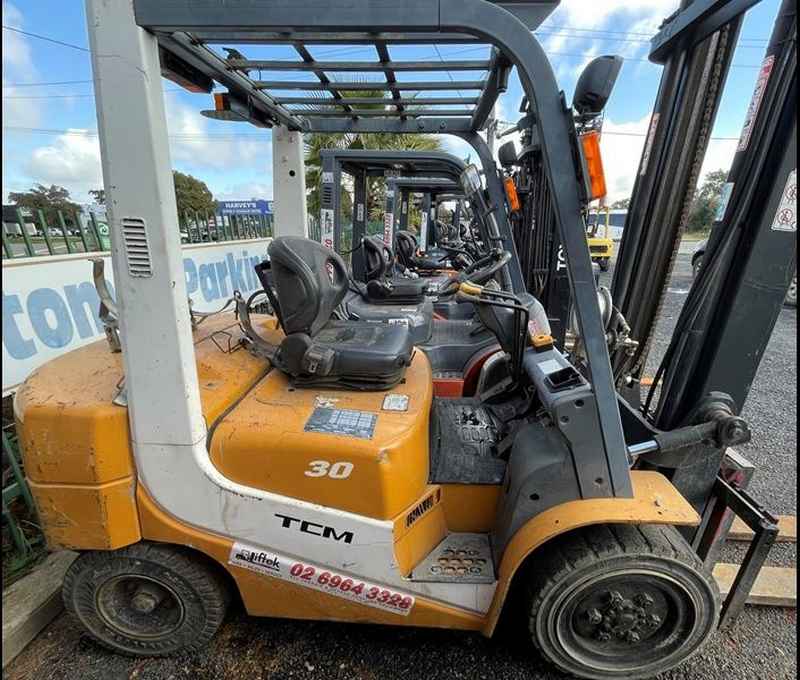

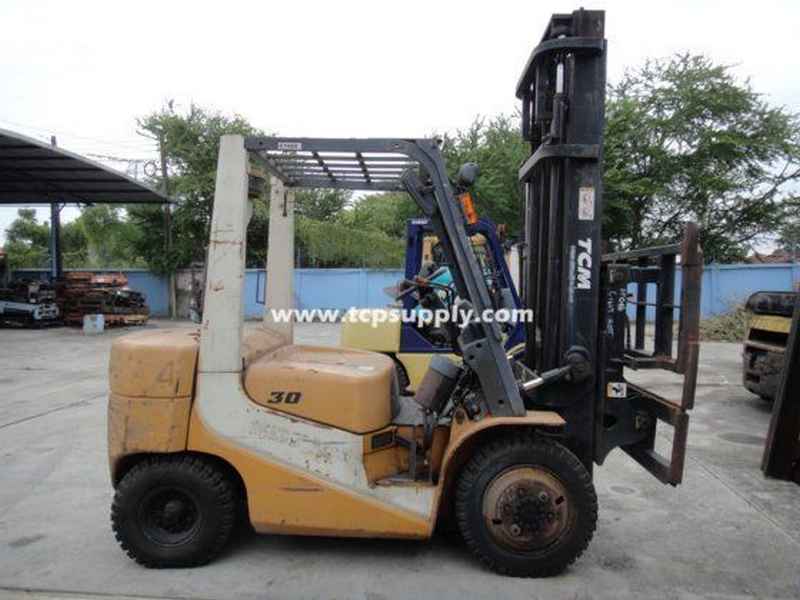

TCM FG30C6H
Contents:
Dimensions
| Length To Fork Face | 8.73 ft in (2660 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 6.81 ft in (2075 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.52 in (140 mm) |
| Height To Top Of Overhead Guard | 6.86 ft in (2090 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 9.45 ft in (2880 mm) |
| Turning Radius | 7.88 ft in (2400 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 4.93 in (125 mm) |
| Lower Speed | 88.58 ft/min (27 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lift Speed | 102.36 ft/min (31.2 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2311 |
| Engine Model | H25 |
| Power | 62 hp (46.3 kw) |
| Torque | 132.1 lb ft (179 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 150.9 cu in (2.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | gas |
Operational
| Operating Weight | 9281.5 lb (4210 kg) |
| Tire Type | Front 28x9-15-12PR Rear 6.50-10-10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.2 mph (19.5 km/h) |
