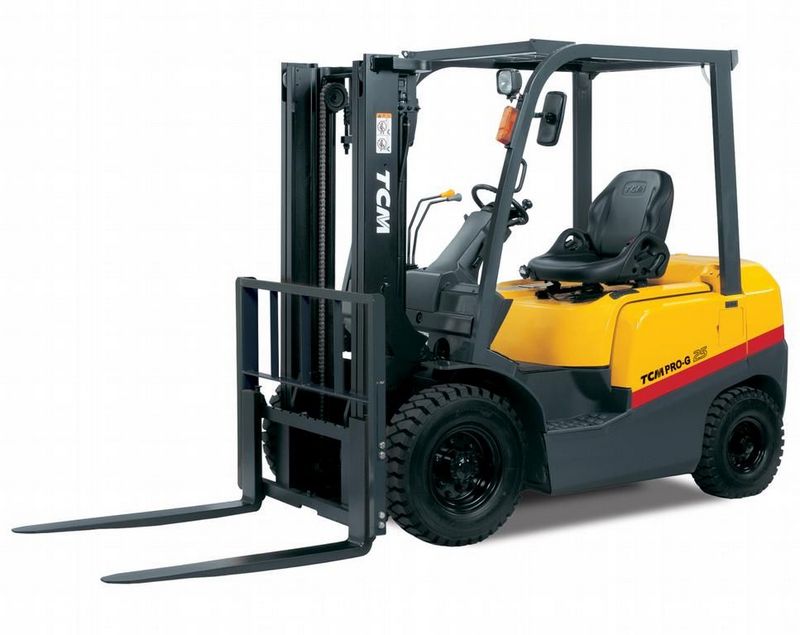

TCM FG25C6H
Contents:
Dimensions
| Length To Fork Face | 8.31 ft in (2530 mm) |
| Overall Width | 3.78 ft in (1150 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 5.25 ft in (1600 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.8 ft in (2070 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 8.83 ft in (2690 mm) |
| Turning Radius | 7.35 ft in (2240 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 4.81 in (122 mm) |
| Lower Speed | 108.27 ft/min (33.01 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5511.56 lb (2500 kg) |
| Lift Speed | 122.05 ft/min (37.21 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2311 |
| Engine Model | H25 |
| Power | 62 hp (46.3 kw) |
| Torque | 132.1 lb ft (179 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 150.9 cu in (2.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | gas |
Operational
| Operating Weight | 7914.6 lb (3590 kg) |
| Tire Type | Front 7.00-12-12PR Rear 6.00-9-10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
