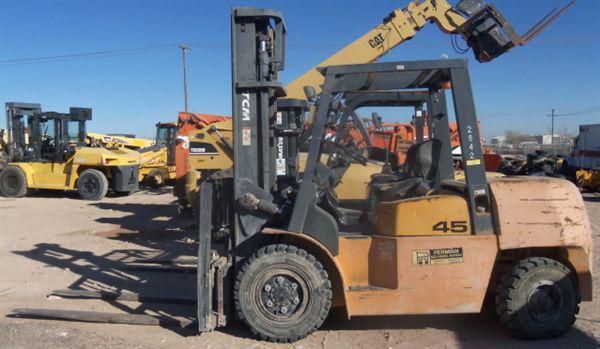

TCM FD45T9
Contents:
Dimensions
| Overall Width | 4.86 ft in (1480.81 mm) |
| Overall Height - Mast Lowered | 7.33 ft in (2234.19 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 9.27 ft in (2824.5 mm) |
Mast
| Lift Speed | 94.5 ft/min (28.81 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 10000 lb (4535.93 kg) |
Engine
| Engine Model | S6S |
| Power | 86.8 hp (64.8 kw) |
| Displacement | 304.9 cu in (5 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 15523 lb (7041.2 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16.2 mph (26.1 km/h) |
