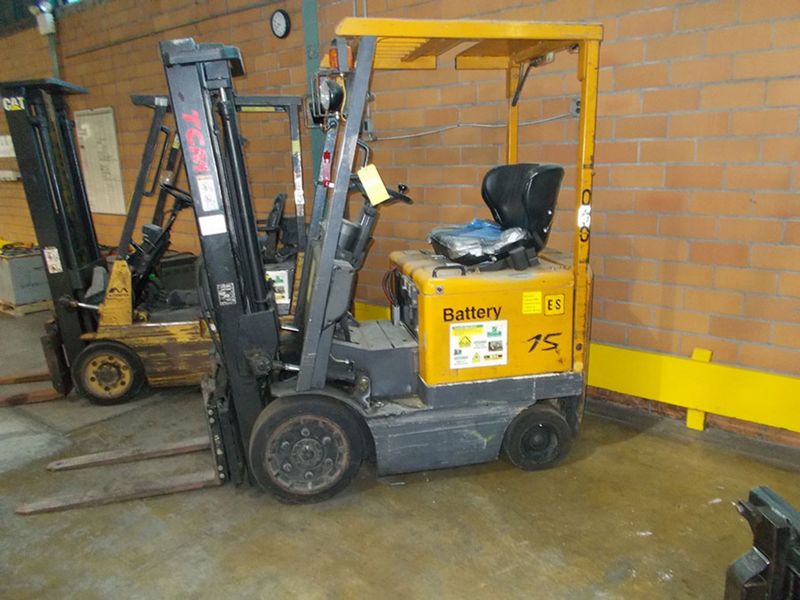

TCM FCB15A4
Contents:
Dimensions
| Overall Width | 3.14 ft in (954.94 mm) |
| Overall Height - Mast Lowered | 6.93 ft in (2110.74 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 5.92 ft in (1803.51 mm) |
Mast
| Lift Speed | 98 ft/min (29.88 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3000 lb (1360.78 kg) |
Engine
| Power | 35.6 hp (26.5 kw) |
| Fuel Type | Battery |
Operational
| Operating Weight | 4640 lb (2104.7 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.3 mph (16.6 km/h) |
