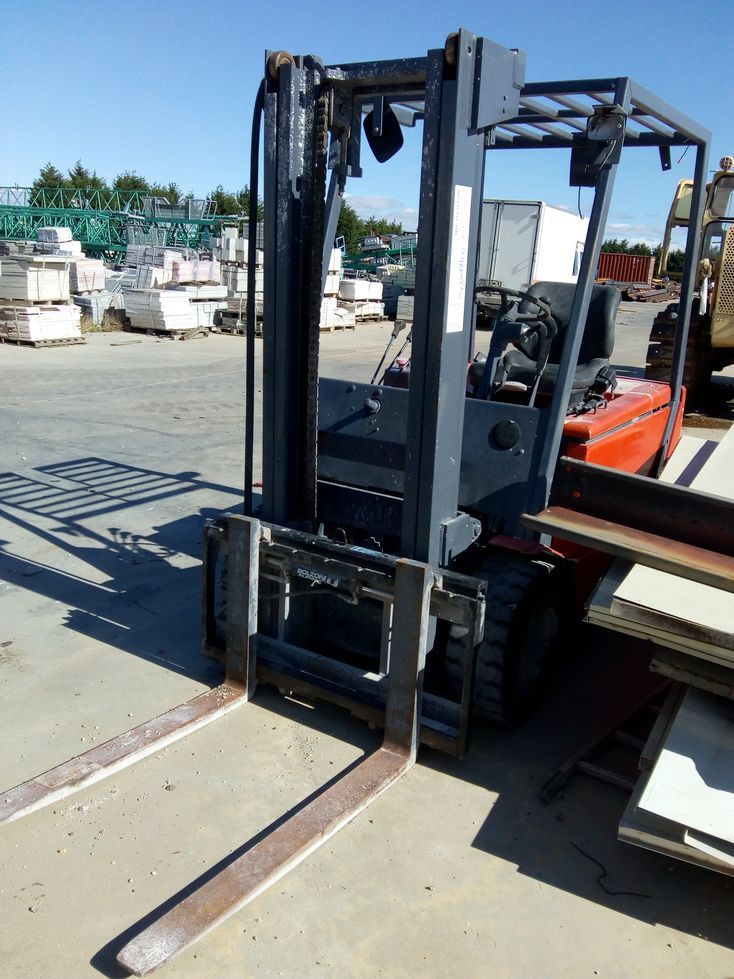

Steinbock Boss PE 30/550D
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 7.89 ft in (2403 mm) |
| Overall Width | 3.68 ft in (1120 mm) |
| Overall Height - Mast Lowered | 8.09 ft in (2465 mm) |
| Wheelbase | 5.49 ft in (1673 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 7.08 ft in (2155 mm) |
| Max Fork Height | 18.05 ft in (5500 mm) |
| Turning Radius | 7.11 ft in (2165 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 118.12 ft/min (36 m/min) |
Engine
| Engine Model | Electric Motor |
| Power | 15.5 hp (11.5 kw) |
Operational
| Operating Weight | 10472 lb (4750 kg) |
| Tire Type | solid |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 4.6 mph (7.3 km/h) |
