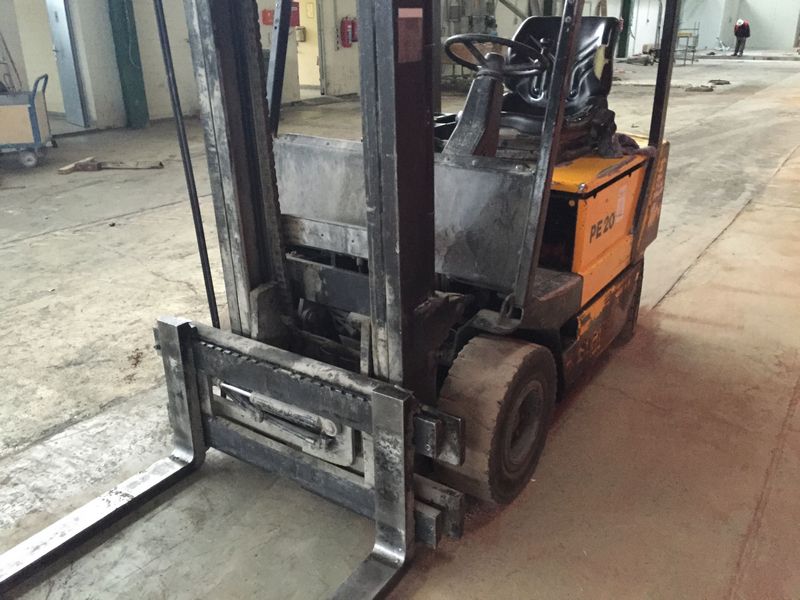

Steinbock Boss PE 20/450D
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 6.9 ft in (2103 mm) |
| Overall Width | 3.68 ft in (1120 mm) |
| Overall Height - Mast Lowered | 6.7 ft in (2040 mm) |
| Wheelbase | 4.55 ft in (1385 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 7.08 ft in (2155 mm) |
| Max Fork Height | 16.57 ft in (5050 mm) |
| Turning Radius | 6.17 ft in (1880 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Capacity | 4078.56 lb (1850 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 122.05 ft/min (37.21 m/min) |
Engine
| Engine Model | Electric Motor |
| Power | 15.5 hp (11.5 kw) |
Operational
| Operating Weight | 8377.6 lb (3800 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 3.9 mph (6.2 km/h) |
