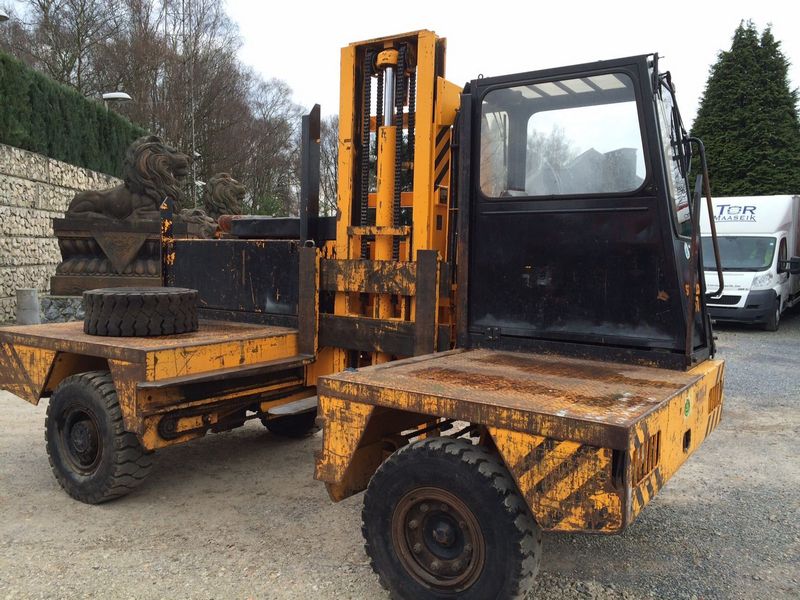

Steinbock Boss KE 18/ZT
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 6.53 ft in (1990 mm) |
| Overall Width | 3.22 ft in (980 mm) |
| Overall Height - Mast Lowered | 6.57 ft in (2000 mm) |
| Wheelbase | 4.53 ft in (1380 mm) |
| Ground Clearance | 13.78 in (350 mm) |
| Height To Top Of Overhead Guard | 6.4 ft in (1950 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 6.27 ft in (1910 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 7 degrees |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Capacity | 3968.33 lb (1800 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 94.49 ft/min (28.8 m/min) |
Engine
| Engine Model | Electric motor |
Operational
| Operating Weight | 6900.5 lb (3130 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10 mph (16 km/h) |
