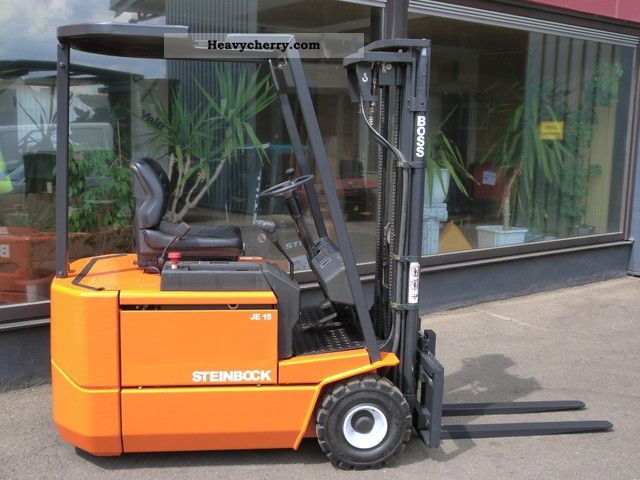

Steinbock Boss JE 15/400
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 5.88 ft in (1790 mm) |
| Overall Width | 3.25 ft in (988 mm) |
| Overall Height - Mast Lowered | 8.21 ft in (2500 mm) |
| Wheelbase | 3.49 ft in (1063 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 6.4 ft in (1950 mm) |
| Max Fork Height | 13.13 ft in (4000 mm) |
| Turning Radius | 4.78 ft in (1455 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 7 degrees |
| Max Fork Spread | 38.51 in (978 mm) |
| Lower Speed | 102.37 ft/min (31.2 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3306.94 lb (1500 kg) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Engine Model | Electric motor |
| Power | 5.4 hp (4 kw) |
Operational
| Operating Weight | 6250.2 lb (2835 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 7.8 mph (12.4 km/h) |
